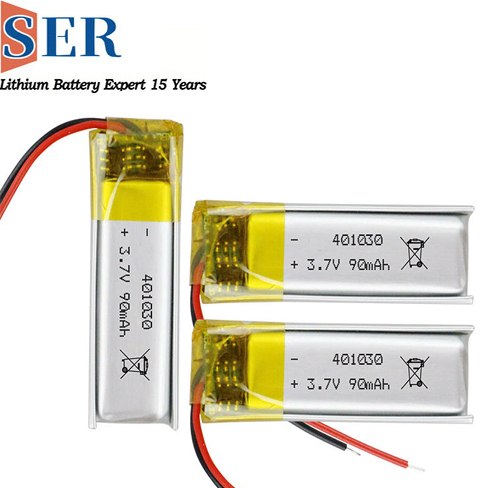

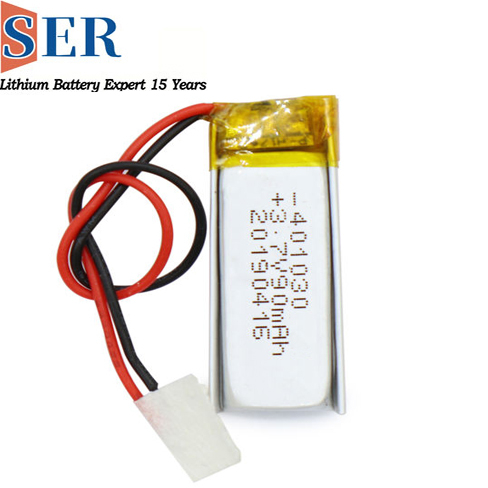

| Specification of Lithium pouch battery small Lipo 401030 battery: |
Specification | Parameters | Lipo 401030 battery |
Nominal | Voltage | 3.7V |
Capacity | 100mAh @ 0.2C to 3.0 V @ 23° C | |
Dimension | 4*10*32mm | |
Electrical | Constant Discharge Current | 50mA |
Max Discharge Current | 100 mA | |
Physical | Terminals/ Connector | Nickel Tabs, wire, plug or OEM |
Others | Working Temperature | -20-60℃ |
Storage Temperature | 0~35℃ | |
Protection Functions (PCM) | Over charge, Over discharge, Over load, Short Circuit protection | |
High Light | 401030 Rechargeable small Lipo Battery 401030 3.7V 100mAh Lipo Polymer Batteries lithium ion battery for Earphone | |
| Features of lithium pouch battery / lipo battery / Li-polymer battery: |
1. High energy density lithium pouch battery.
2. Long life cycle of charging & discharging, more than 500 cycles.
3. Enhanced safety with Japan IC & MOS protectors.
4. Thinner design & lighter weight with aluminum-plastic composite.
5. OEM & ODM services for special size of lithium polymer battery.
6. Easy to assemble with mounted connectors (Molex, Tyco and so on).
7. Rigorous testing to ensure the quality of all lithium polymer batteries.
8. Most inportant: competitive price.
9. Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload
Multiple Protection functions:
| Product Catalogue: |
| Model | Nominal Voltage(V) | Nominal(mAh) | Dimension(mm) | Approx. Weight (g) | |||
| Typical | Mini | Thickness | Width | Height | |||
| LP301230 | 3.7 | 70 | 60 | 3.5 | 12.5 | 31 | 1.4 |
| LP401230 | 3.7 | 100 | 90 | 4.3 | 12.5 | 31 | 2 |
| LP501429 | 3.7 | 155 | 130 | 5.3 | 14.5 | 30 | 3.1 |
| LP501622 | 3.7 | 120 | 100 | 5.3 | 16.5 | 23 | 2.4 |
| LP801622 | 3.7 | 200 | 180 | 8.3 | 16.5 | 23 | 4 |
| LP351745 | 3.7 | 200 | 180 | 3.8 | 17.5 | 46 | 4 |
| LP501745 | 3.7 | 350 | 310 | 5.3 | 17.5 | 46 | 7 |
| LP402024 | 3.7 | 165 | 150 | 4.3 | 20.5 | 25 | 3.3 |
| LP452024 | 3.7 | 180 | 170 | 4.8 | 20.5 | 25 | 6.4 |
| LP602024 | 3.7 | 210 | 190 | 6 | 20 | 25 | 4.5 |
| LP302030 | 3.7 | 130 | 110 | 3.5 | 20.5 | 31 | 2.6 |
| LP352030 | 3.7 | 160 | 140 | 3.8 | 20.5 | 31 | 3.2 |
| LP502030 | 3.7 | 250 | 230 | 5.3 | 20.5 | 31 | 5 |
| LP602030 | 3.7 | 300 | 280 | 6.3 | 20.5 | 31 | 6 |
| LP702030 | 3.7 | 350 | 320 | 7.3 | 20.5 | 31 | 7 |
| LP402035 | 3.7 | 230 | 210 | 4.3 | 20.5 | 36 | 4.6 |
| LP402040 | 3.7 | 270 | 250 | 4.3 | 20.5 | 41 | 5.4 |
| LP602040 | 3.7 | 450 | 420 | 6.3 | 20.5 | 41 | 9 |
| LP552530 | 3.7 | 380 | 360 | 5.8 | 25.5 | 31 | 8 |
| LP402535 | 3.7 | 320 | 300 | 4.3 | 25.5 | 36 | 6 |
| LP542730 | 3.7 | 380 | 350 | 5.7 | 27.5 | 31 | 7.6 |
| LP403026 | 3.7 | 260 | 220 | 4.3 | 30.5 | 27 | 5.2 |
| LP663448 | 3.7 | 1050 | 950 | 6.9 | 34.5 | 49 | 21 |
| LP753448 | 3.7 | 1350 | 1250 | 7.8 | 34.5 | 49 | 27 |
| LP323450 | 3.7 | 550 | 500 | 3.5 | 34.5 | 51 | 11 |
| LP383450 | 3.7 | 720 | 670 | 4.1 | 34.5 | 51 | 14.4 |
| LP423450 | 3.7 | 660 | 610 | 4.2 | 34 | 50 | 13.5 |
| LP503450 | 3.7 | 1000 | 900 | 5.3 | 34.5 | 51 | 20 |
| LP603450 | 3.7 | 1000 | 950 | 6.3 | 34.5 | 51 | 20 |
| LP903450 | 3.7 | 1500 | 1450 | 9.3 | 34.5 | 51 | 31 |
| LP953450 | 3.7 | 1800 | 1700 | 9.8 | 34.5 | 51 | 36 |
| LP103450 | 3.7 | 1850 | 1750 | 10.3 | 34.5 | 51 | 37 |
| LP243454 | 3.7 | 350 | 330 | 3.5 | 34.5 | 55 | 7 |
| LP603455 | 3.7 | 1200 | 1100 | 6 | 34 | 55 | 24 |
| LP803466 | 3.7 | 1900 | 1800 | 8.3 | 34.5 | 67 | 38 |
| LP703480 | 3.7 | 2100 | 2000 | 7.3 | 34.5 | 81 | 42 |
| LP383560 | 3.7 | 850 | 800 | 4.1 | 35.5 | 61 | 17 |
| LP603560 | 3.7 | 1300 | 1200 | 6.3 | 35.5 | 61 | 26 |
| LP853560 | 3.7 | 1800 | 1700 | 8.8 | 35.5 | 61 | 36 |
| LP503759 | 3.7 | 1200 | 1100 | 5.3 | 37.5 | 60 | 24 |
| LP583759 | 3.7 | 1350 | 1250 | 6.1 | 37.5 | 60 | 27 |
| LP653759 | 3.7 | 1550 | 1450 | 6.8 | 37.5 | 60 | 31 |
| LP903759 | 3.7 | 2200 | 2100 | 9.3 | 37.5 | 60 | 44 |
| LP354261 | 3.7 | 800 | 750 | 3.8 | 42.5 | 62 | 16 |
| LP804261 | 3.7 | 2100 | 2000 | 8.3 | 42.5 | 62 | 42 |
As a professional manufacturer in the lithium battery industry, SER Battery has a variety of lithium polymer batteriess, including
1. low-temperature lipo battery,
2. high-rate Lipo battery and
3. normal soft-pack Lipo batteries.
If you want a custom size & capacity of li polymer battery, it's also friendly for us.
Our experienced engineers and advanced technology will give you safe, excellent and fast design solution, giving your product a competitive edge over competitors.
All we do what we want to help you to start your good idea.
| Applications: |
Widely used for :
The Best Choice for the Following Applications
1.Wireless Headphones,Wireless Mouse, Keyboard, Gamepad,Outdoor LED Light.
2. Air purifier, Hand warmer, Smart water cup, Electric toothbrush,
3. Beauty/Washing Instrument ,Reading Pen, Recording Pen,
Miner Lamp ,Airplane Model.Tire Pressure Meter .Driving Recorder.
Hot tags:small Lipo Battery,Smallest Lipo Batteries,micro lipo battery,small lithium polymer batteries,smallest rechargeable battery,smallest lithium polymer battery,Micro Lithium Polymer Battery,smallest lithium-ion rechargeable battery,Customized,low temperature,manufacturers,suppliers,factory
