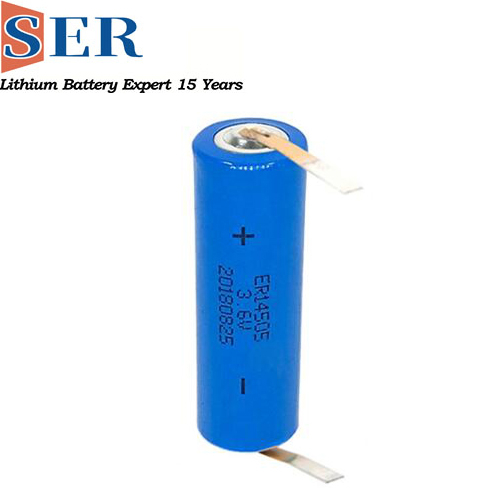

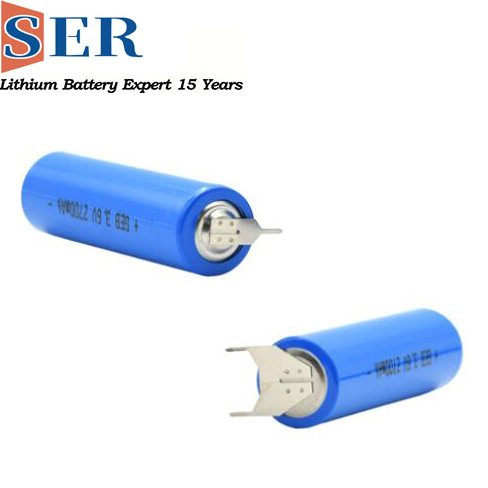

ER14505-T2 ER14505-VB Pins Lithium thionyl chloride(LiSOCl2) battery Energy Type/Bobbin Type primary Li-SOCL2 battery pack
| Battery Specifications: |
Recommended battery model parameters:
Battery model: ER14505-T2, ER14505-VB Pins
Battery brand: SER
Battery performance index
1. Battery capacity: (23±2℃, 2.0mA/2.0V) 2400mAh
2. Open circuit voltage: ≥3.64V
3. Load voltage: (8Ω, 20±5℃, time ≤10s) ≥3.20V
4. Continuous working currents: (20±5℃) 100mA
5. Large pulse working current: (20±5℃) 200mA
6. Operating temperature range: -55~+85℃
7. Battery storage life: 10 years
8. Type: Energy type / Bobbin type
Alternative Models :
Tadiran TL-5903, Tadiran TL-2100, Tadiran TL-4903, Tadiran TL-5104, LS14500 3PF (RP), Xeno XL-060F
OEM: with solder tabs, pins, wires, connectors, battery packs
| LiSOCL2 Battery Features |
Higher energy density and lower weight.
High and stable load voltage
Superior drain capacity.
Low self-dischage rate (less than 1% after 1 year of storage at 20 °C)
Stainless steel container.
Hermetic glass-to-metal sealing.
Non-flammable electrolyte.
Laser weilding.
Tags:
ER14505-T2,ER14505-VB Pins,Lithium thionyl chloride,Li-SOCL2 battery,Li-SOCL2 battery pack,primary Li-SOCL2 battery pack,Energy Type,
Bobbin Type
| Applications |
Main applications:
Smart Merting: gas meter, water meter, electricity meter, heat meter
Security systems: wireless alarm, sensors, fire alarm, etc.
Military applications: rescue equipment, GPS, radiocommunication, emergency location transmitters, etc.
Back up power
Others: medical, gas & oil, TPMS, RFID, PCB, etc
Company Advantage | |||||||
|  |  | |||||
With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month. | Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company. | Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service. | |||||
 |  |
| |||||
Efficient and innovative R & D team helps the company lead in product design and superior performance | While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities. | For many years, the professional | |||||
Product Advantage | ||||
| 1. Full range of battery categories 17 years of development, SER have | 2. Safety The perfect protection IC has been used, | 3. Excellent and stable performance Strict control for cleanliness in dust-free | ||
4. OEM & ODM Ability Professional engineers have rich | 5. Technology Our dedicated and experienced engineers team always work together to our customers | 6. Delievry Fast delivery with standard package,will | ||
Hot tags:ER14505 T pin,ER14505 Li-SOCl2 Battery 3.6V,LS14500 ER14505,ER14505 3.6V 2.6AH Li-SOCl2 battery,li-socl2 battery passivation,Lithium Primary battery 3.6V 14505,lithium primary battery,lithium thionyl chloride battery,Customized,low temperature,manufacturers,suppliers,factory
