Detailed Product DescriptionBattery Type:1/2AA SizeVoltage:3.6VCapacity:1,200mAhChemical System:LiSocl2Size:Ø14.5*25.4mmShelf


Detailed Product Description
Battery Type: 1/2AA Size Voltage: 3.6V
Capacity: 1,200mAh Chemical System: LiSocl2
Size: Ø14.5*25.4mm Shelf Life: 10 Years
Application1: Smoke sensor Application2: Detectors
Application3: Portable Communication Equipment Application4: Meter
Shape: Cyclindrical

High Light:

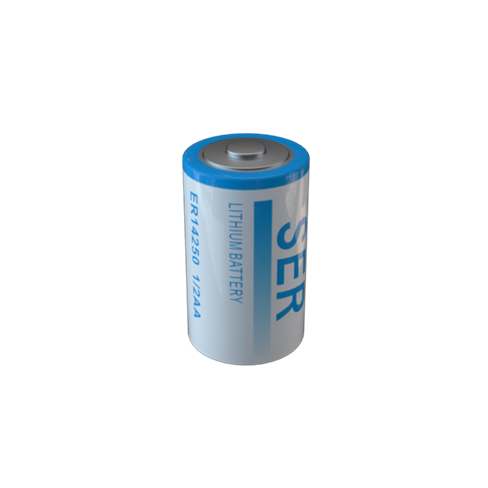

Lisocl2 energy type ER14250 3.6v size 1/2AA 1.2Ah lithium primary battery for heat meter

Lisocl2 energy type ER14250 3.6v size 1/2AA 1.2Ah lithium primary battery for heat meter

Technical specifications:
Battery Technology Lithium thionyl chloride / LiSOCL2
Battery structure High capacity type
Nominal Voltage 3.6V
Nominal Capacity 1200mAh
Open circuit voltage 3.66V (at +20°C)
Cut off Voltage 2.0V
Max. Constant Current 15mA
Max. Pulse Current 50mA
Operating Temperature -55°C~+85°C/-67°F~+185°F
Storage Life ≥10 years
Self – Discharge Rate: <1% per year
External Diameter (Max) 14.5mm
External Height (Max) 25.4mm
Weights 10g


1.High continuous discharge current and current pulses.
2.High energy density, 430Wh/Kg.
3.Open circuit voltage above 3.65V for single cell.
4.Wide range of operating temperature(-55°C~+85°C).
5.Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.
6.Long operating time (over 8 years) for continuous low current discharge with high current pulses.
7.Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).


The battery have wide applications:

Utility water/ Gas Meter, smart locks, Automatic Meter Reading;

Medical Equipment, CMOS memory backup, Tracking Systems,Remote Monitory Systems;

Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags;

Scientific Instruments, Portable Communication Equipment, Military Radio Stations;

and other electric powered devices requiring small size, high power batteries.

C Size 3.6V Er 6500mAh ER26500M Lithium Primary Battery 0

Packaging & Shipping

Packing: Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.

Shipping: Leadtime is 3-20 working days for normal orders.

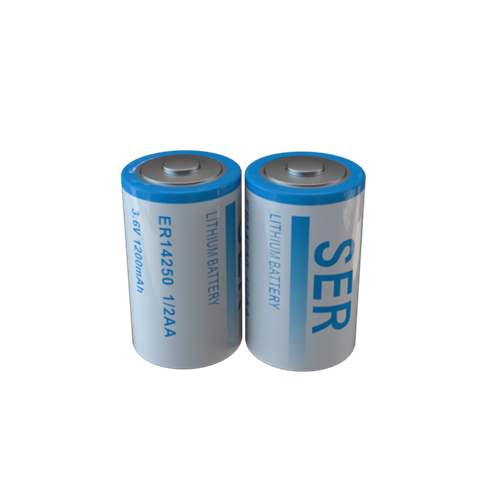

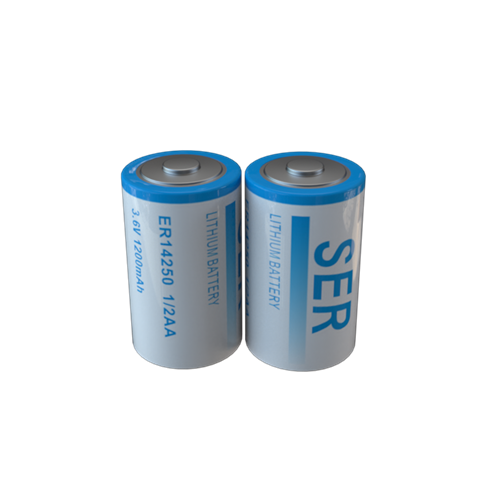

Lisocl2 energy type ER14250 3.6v size 1/2AA 1.2Ah lithium primary battery for heat meter

Lisocl2 energy type ER14250 3.6v size 1/2AA 1.2Ah lithium primary battery for heat meter(图2)

We can add the Pin, wire and connector on the battery according to requirement

C Size 3.6V Er 6500mAh ER26500M Lithium Primary Battery 2

Why Choose us?

Company Advantages:

We have been continously developing new products to meet requirements of different customers and applications since 1980. what's more, performance of batteries such as safety, energy density, temperature characteristics, discharge platform, resistance, cycle life is always improving.
Pursuing a business concept of “Quality First”, our assembly lines are certified by the Chinese military and ISO9001 quality system. We also have a fully equipped environment and reliability testing center to assure our products meeting military specifications.

High quality batteries:

Our batteries are in enough capacity, and lower in RI. Before shipment, we will 100% inspect and ensure battery quality well approved by our clients.

Better service:
Professional and experienced engineers can provide satisfied perfect solutions to customers. New designs can lead to actual products within 15days.A professional,dedicated and well known technical& marketing team with the ability to identify,support and serve our customers with diamante service.

We always offer customers with highest quality, reasonable price and intimate after-service to support them on marketing developing. It is our wish to obtain muti-benefit with global users through OEM and ODM business.
