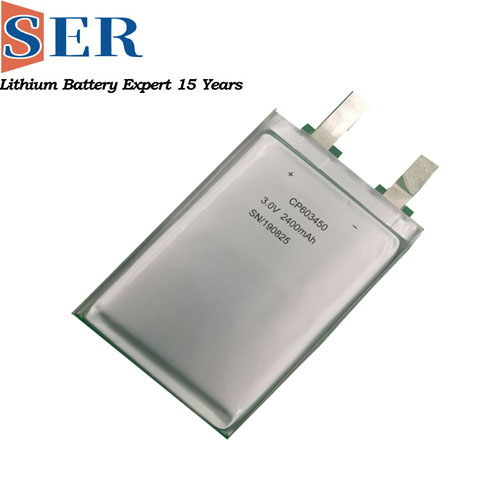

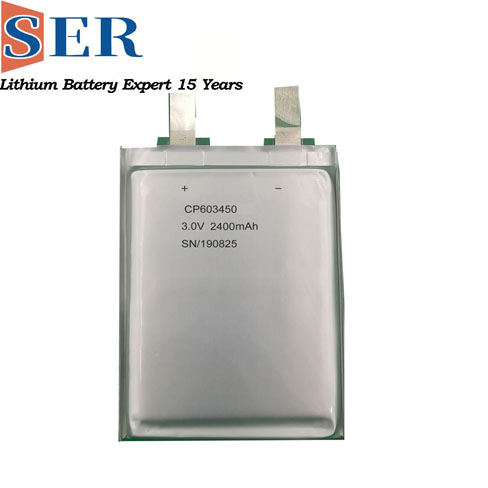

CP603450 pouch cell 2400mah 3.0v Ultra-thin LiMnO2 Battery soft primary batteries Non rechargeable personnel identification card battery |
| Ultra thin Batteries | Excellent safety performance | ||||||||
● Once a safety hazard occurs, the liquid battery is easy to explode, while the polymer battery will only blow up at best. | |||||||||
| Thin thickness | |||||||||
Advantages
| ● The thickness can be less than 0.4mm, which meets the needs of current wearable devices. | ||||||||
| Light weight | |||||||||
| ● The weight of polymer battery is 40% lighter than steel shell lithium battery of the same capacity and 20% lighter than aluminum shell battery. | |||||||||
| Large capacity | |||||||||
| Small internal resistance | |||||||||
| The shape can be customized | |||||||||
Excellent discharge and charge characteristics | |||||||||
| TECHNICAL SPECIFICATIONS |
Battery model: Pouch cell CP603450
Battery brand: SER
Battery performance index
1. Battery capacity: (23±2℃, 10 mA/2.0V) 2400mAh
2. Open circuit voltage: ≥3.0V
3. Cut-off voltage: 2.0V
4. Max Continuous working currents: 500mA
5. Max pulse working current: 1000mA
6. Max dimension: 6.0*34*50
7. Operating temperature range: -20~+60℃
8. Battery storage life: 5 years (Storange: clean, below +20℃, dry and ventilated.）
 |  |
Warning:
Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
APPLICATIONS |
Main applications:
| 1. Nonstop charging system; | 2. Intelligent parking lot; |
| 3. Container identification; | 4. Vehicle charge check; |
| 5. Mine personnel identification; | 6. Automated railcar identification management; |
| 7. Automated road charge management; | 8. Automated voyage passengers luggage identification; |
| 9. Vehicle entry and exit control; | 10.Compus all-purpose card; |
| 11.Repasting card and public transportation card; | 12.Associator card, drive license card, and health card; |
| 13.Animal identification(raising cattle, sheep, pigeon,etc); | 14.Automate management of logistic and storage; |
| 15.Automobile remote control lock; | 16.Intellectualized door etc. |
| PRODUCTION PROCESS |
Company Advantage | |||||||
|  |  | |||||
With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month. | Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company. | Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service. | |||||
 |  |
| |||||
Efficient and innovative R & D team helps the company lead in product design and superior performance | While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities. | For many years, the professional | |||||
Product Advantage | ||||
| 1. Full range of battery categories 17 years of development, SER have | 2. Safety The perfect protection IC has been used, | 3. Excellent and stable performance Strict control for cleanliness in dust-free | ||
4. OEM & ODM Ability Professional engineers have rich | 5. Technology Our dedicated and experienced engineers team always work together to our customers | 6. Delievry Fast delivery with standard package,will | ||
Hot tags:cp603450,603450 LiMNO2 battery,603450 3.0V,603450 primary battery,Cp603450 Primary Limno2 Battery,Cp603450 3v 2300mah,LiMnO2 Battery cp603450,Ultra-thin Limno2 battery CP603450,CP603450 Non rechargeable Batterie,Customized,low temperature,manufacturers,suppliers,factory
