| Product Description: |

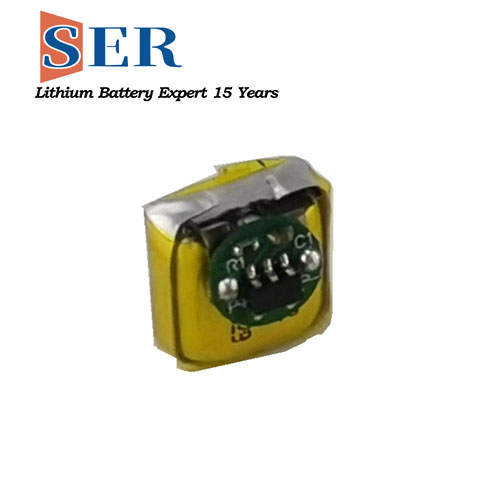

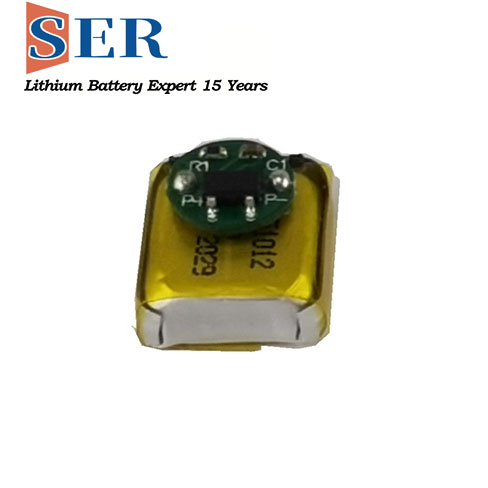

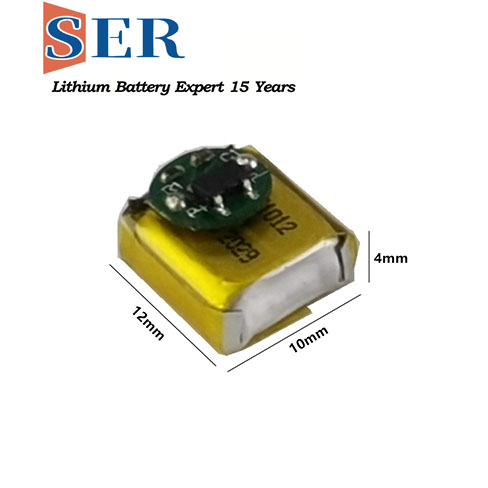

Li-polymer 401012 | High Voltage | ||||||||
● Norminal voltage up to 3.8V | |||||||||
| High Energy Density | |||||||||
FEATURES
| ● Energy density up to 550 Wh/kg | ||||||||
| Stable Operating Voltage | |||||||||
| ● More than 90% of the capacity could be output at a stable voltage | |||||||||
| Wide Operating Temperature Range | |||||||||
| ● -20°C to +60°C | |||||||||
| Long cycle Life | |||||||||
● More than 500 times | |||||||||
| TECHNICAL SPECIFICATIONS |
Battery model: LP401012
Nominal voltage: 3.7V
Minimum capacity: 40mAh@25ºC
Charging voltage: 4.2V
Discharging cut-off voltage: 3.0V
Standard charging: 0.2C
Max charging: 1.0C
Standard continuous discharging current: 1C
Max discharging current: 2C
Operating temperature:
Charging: 0°C ~ 45°C Discharging: -20°C ~60°C
Storage : (At 50% SOC and specified temp)
-10ºC~25ºC (12 months ≥85% )
-10ºC ~45ºC (6 months ≥85% )
-10ºC~55ºC (1 month ≥90% )
20±5ºC is the recommended storage temperature
Visual Inspection:
There should not be any remarkable scratches, cracks,bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell.
Applications: |
Applications: Toys, Home Appliances, Consumer Electronics, Eye Care Massager,Lip Massage Pen, smart Headset Earbuds,TWS
Company Advantage | |||||||
|  |  | |||||
With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month. | Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company. | Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service. | |||||
 |  |
| |||||
Efficient and innovative R & D team helps the company lead in product design and superior performance | While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities. | For many years, the professional | |||||
Product Advantage | ||||
| 1. Full range of battery categories 17 years of development, SER have | 2. Safety The perfect protection IC has been used, | 3. Excellent and stable performance Strict control for cleanliness in dust-free | ||
4. OEM & ODM Ability Professional engineers have rich | 5. Technology Our dedicated and experienced engineers team always work together to our customers | 6. Delievry Fast delivery with standard package,will | ||
Hot tags:Tiny Lipo battery,Small Li-polymer battery 401012,401012 Battery with PCB for Headset Earbud,LP401012 Lithium Polymer Battery with PCB,3.7v polymer lithium battery 401012 40mah,401012-30mAh Polymer Smartwear battery,Picoclick battery 401012,Li-polymer battery 3.7v 401012,3.7v 401012 Mini Small 30mah,Customized,low temperature,manufacturers,suppliers,factory
