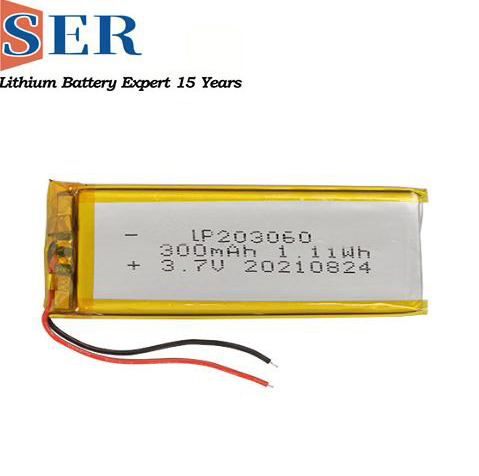

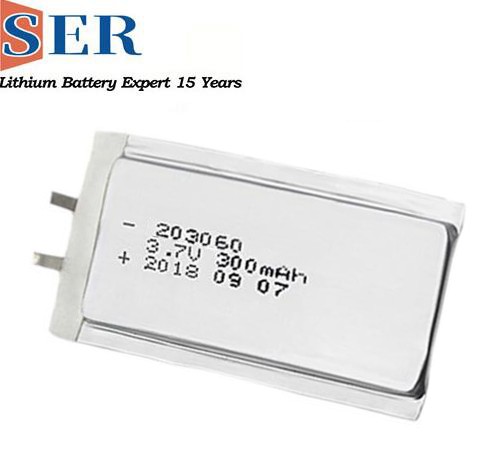

| Specification of Lithium pouch battery Lipo 203060 thin battery: |
Specification | Parameters | Lithium pouch battery Lipo 203060 thin battery |
Nominal | Voltage | 3.7V |
Capacity | 300mAh @ 0.2C to 3.0 V @ 23° C | |
Dimension | 2*30*60mm | |
Electrical | Constant Discharge Current | 150mA |
Max Discharge Current | 300 mA | |
Physical | Terminals/ Connector | Nickel Tabs, wire, plug or OEM |
Others | Working Temperature | -20-60℃ |
Storage Temperature | 0~35℃ | |
Protection Functions (PCM) | Over charge, Over discharge, Over load, Short Circuit protection | |
High Light | 203060 3.7V Ultra-thin rechargeable lithium battery 300mAh flex thin pouch battery thinest li-polymer battery for smart lock | |
| Features of lithium pouch battery / lipo battery / Li-polymer battery: |
1. High energy density lithium pouch battery.
2. Long life cycle of charging & discharging, more than 500 cycles.
3. Enhanced safety with Japan IC & MOS protectors.
4. Thinner design & lighter weight with aluminum-plastic composite.
5. OEM & ODM services for special size of lithium polymer battery.
6. Easy to assemble with mounted connectors (Molex, Tyco and so on).
7. Rigorous testing to ensure the quality of all lithium polymer batteries.
8. Most inportant: competitive price.
9. Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload
Besides: this battery is really the latest state of the art technology in rechargeable. It is extremely thin, light weight and super thin compared to any rechargeable chemistry. Low weight, small size but huge capacity. The other advantage of the lithium polymer technology is the very low self discharge.
Multiple Protection functions:
Product Catalogue: |
| Model | Nominal Voltage(V) | Nominal(mAh) | Dimension(mm) | Approx. Weight (g) | |||
| Typical | Mini | Thickness | Width | Height | |||
| LP301230 | 3.7 | 70 | 60 | 3.5 | 12.5 | 31 | 1.4 |
| LP401230 | 3.7 | 100 | 90 | 4.3 | 12.5 | 31 | 2 |
| LP501429 | 3.7 | 155 | 130 | 5.3 | 14.5 | 30 | 3.1 |
| LP501622 | 3.7 | 120 | 100 | 5.3 | 16.5 | 23 | 2.4 |
| LP801622 | 3.7 | 200 | 180 | 8.3 | 16.5 | 23 | 4 |
| LP351745 | 3.7 | 200 | 180 | 3.8 | 17.5 | 46 | 4 |
| LP501745 | 3.7 | 350 | 310 | 5.3 | 17.5 | 46 | 7 |
| LP402024 | 3.7 | 165 | 150 | 4.3 | 20.5 | 25 | 3.3 |
| LP452024 | 3.7 | 180 | 170 | 4.8 | 20.5 | 25 | 6.4 |
| LP602024 | 3.7 | 210 | 190 | 6 | 20 | 25 | 4.5 |
| LP302030 | 3.7 | 130 | 110 | 3.5 | 20.5 | 31 | 2.6 |
| LP352030 | 3.7 | 160 | 140 | 3.8 | 20.5 | 31 | 3.2 |
| LP502030 | 3.7 | 250 | 230 | 5.3 | 20.5 | 31 | 5 |
| LP602030 | 3.7 | 300 | 280 | 6.3 | 20.5 | 31 | 6 |
| LP702030 | 3.7 | 350 | 320 | 7.3 | 20.5 | 31 | 7 |
| LP402035 | 3.7 | 230 | 210 | 4.3 | 20.5 | 36 | 4.6 |
| LP402040 | 3.7 | 270 | 250 | 4.3 | 20.5 | 41 | 5.4 |
| LP602040 | 3.7 | 450 | 420 | 6.3 | 20.5 | 41 | 9 |
| LP552530 | 3.7 | 380 | 360 | 5.8 | 25.5 | 31 | 8 |
| LP402535 | 3.7 | 320 | 300 | 4.3 | 25.5 | 36 | 6 |
| LP542730 | 3.7 | 380 | 350 | 5.7 | 27.5 | 31 | 7.6 |
| LP403026 | 3.7 | 260 | 220 | 4.3 | 30.5 | 27 | 5.2 |
| LP663448 | 3.7 | 1050 | 950 | 6.9 | 34.5 | 49 | 21 |
| LP753448 | 3.7 | 1350 | 1250 | 7.8 | 34.5 | 49 | 27 |
| LP323450 | 3.7 | 550 | 500 | 3.5 | 34.5 | 51 | 11 |
| LP383450 | 3.7 | 720 | 670 | 4.1 | 34.5 | 51 | 14.4 |
| LP423450 | 3.7 | 660 | 610 | 4.2 | 34 | 50 | 13.5 |
| LP503450 | 3.7 | 1000 | 900 | 5.3 | 34.5 | 51 | 20 |
| LP603450 | 3.7 | 1000 | 950 | 6.3 | 34.5 | 51 | 20 |
| LP903450 | 3.7 | 1500 | 1450 | 9.3 | 34.5 | 51 | 31 |
| LP953450 | 3.7 | 1800 | 1700 | 9.8 | 34.5 | 51 | 36 |
| LP103450 | 3.7 | 1850 | 1750 | 10.3 | 34.5 | 51 | 37 |
| LP243454 | 3.7 | 350 | 330 | 3.5 | 34.5 | 55 | 7 |
| LP603455 | 3.7 | 1200 | 1100 | 6 | 34 | 55 | 24 |
| LP803466 | 3.7 | 1900 | 1800 | 8.3 | 34.5 | 67 | 38 |
| LP703480 | 3.7 | 2100 | 2000 | 7.3 | 34.5 | 81 | 42 |
| LP383560 | 3.7 | 850 | 800 | 4.1 | 35.5 | 61 | 17 |
| LP603560 | 3.7 | 1300 | 1200 | 6.3 | 35.5 | 61 | 26 |
| LP853560 | 3.7 | 1800 | 1700 | 8.8 | 35.5 | 61 | 36 |
| LP503759 | 3.7 | 1200 | 1100 | 5.3 | 37.5 | 60 | 24 |
| LP583759 | 3.7 | 1350 | 1250 | 6.1 | 37.5 | 60 | 27 |
| LP653759 | 3.7 | 1550 | 1450 | 6.8 | 37.5 | 60 | 31 |
| LP903759 | 3.7 | 2200 | 2100 | 9.3 | 37.5 | 60 | 44 |
| LP354261 | 3.7 | 800 | 750 | 3.8 | 42.5 | 62 | 16 |
| LP804261 | 3.7 | 2100 | 2000 | 8.3 | 42.5 | 62 | 42 |
As a professional manufacturer in the lithium battery industry, SER Battery has a variety of lithium polymer batteriess, including
1. low-temperature lipo battery,
2. high-rate Lipo battery and
3. normal soft-pack Lipo batteries.
If you want a custom size & capacity of li polymer battery, it's also friendly for us.
Our experienced engineers and advanced technology will give you safe, excellent and fast design solution, giving your product a competitive edge over competitors.
All we do what we want to help you to start your good idea.
| Applications: |
Widely used for :
The Best Choice for the Following Applications
1. smart mobile phone,electronic products, GPS,GPRSNavigation.
2. Internet of things: Bank card/multi-function card/active radio frequency tag RFID
3. Active electronic tag/recorder, ETC Card,Highway Card, campus card, subway card,Access Card, smart hotel room card, etc.
4. Wearable devices: smart wrist smart belt, PET Activity Monitor temperature patch, smart glasses, health monitoring instrumentsexercise meter, etc..
Hot tags:Lp203060 battery,Ultra thin battery 203060,Thin Lipo battery 203060,Thin rechargeable battery 203060 3.7V,thin Li-polymer battery 3.7v 203060,li-ion polymer battery 203060,Thin battery 203060 for wearable device,thinest li-polymer battery 203060,flex thin pouch battery 203060,Customized,low temperature,manufacturers,suppliers,factory
