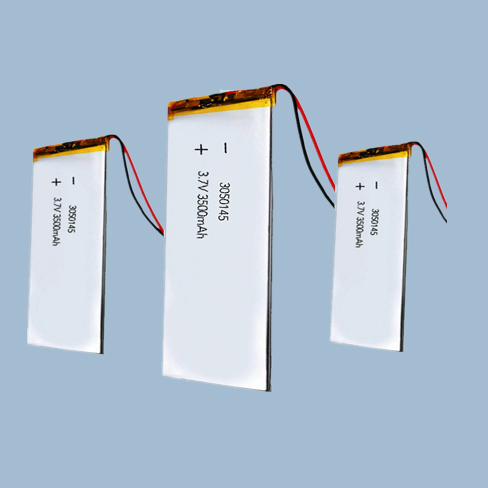

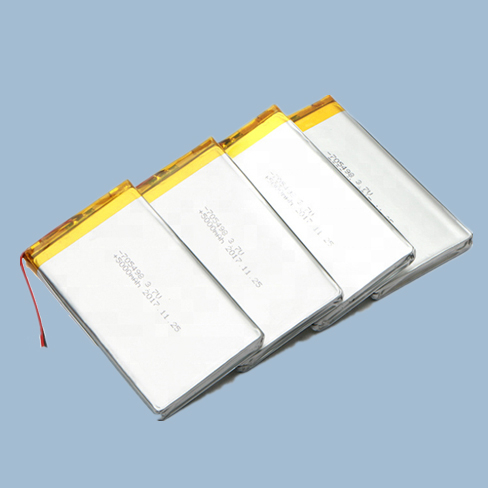

Lipo Battery Catalogue

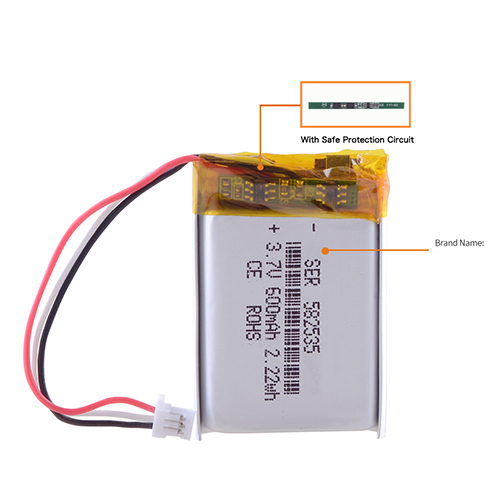

Many models of lipo battery,lithium polymer battery and rechargeable polymer battery,Lithium Polymer Battery with PCM and connector.
Model NO.:current or custom
Voltage:3.7V
Capacity:15~20000mAh
Shape:soft flat
Battery Size:Thickness*Wideth*Length
Brand:SER or OEM
Working temperature:-40°C~+85°C
Availability:

lipo banner.jpg


Rechargeable Li-ion Polymer batteries and packs

Li-Polymer Batteries


Excellent safety performance


● Once a safety hazard occurs, the liquid battery is easy to explode, while the polymer battery will only blow up at best.


Thin thickness


 Advantages

Lipo battery and Li-ion battery catalogue(图2)


● The thickness can be less than 1mm, which meets the needs of current wearable devices.

Light weight

● The weight of polymer battery is 40% lighter than steel shell lithium battery of the same capacity and 20% lighter than aluminum shell battery.

Large capacity

Small internal resistance

The shape can be customized

Excellent discharge and charge characteristics


TECHNICAL SPECIFICATIONS

Model Nominal Voltage(V) Nominal(mAh) Dimension(mm) Approx. Weight   (g)
Typical Mini Thickness Width Height
LP301230 3.7 70 60 3.5 12.5 31 1.4
LP401230 3.7 100 90 4.3 12.5 31 2
LP501429 3.7 155 130 5.3 14.5 30 3.1
LP501622 3.7 120 100 5.3 16.5 23 2.4
LP801622 3.7 200 180 8.3 16.5 23 4
LP351745 3.7 200 180 3.8 17.5 46 4
LP501745 3.7 350 310 5.3 17.5 46 7
LP402024 3.7 165 150 4.3 20.5 25 3.3
LP452024 3.7 180 170 4.8 20.5 25 6.4
LP602024 3.7 210 190 6 20 25 4.5
LP302030 3.7 130 110 3.5 20.5 31 2.6
LP352030 3.7 160 140 3.8 20.5 31 3.2
LP502030 3.7 250 230 5.3 20.5 31 5
LP602030 3.7 300 280 6.3 20.5 31 6
LP702030 3.7 350 320 7.3 20.5 31 7
LP402035 3.7 230 210 4.3 20.5 36 4.6
LP402040 3.7 270 250 4.3 20.5 41 5.4
LP602040 3.7 450 420 6.3 20.5 41 9
LP552530 3.7 380 360 5.8 25.5 31 8
LP402535 3.7 320 300 4.3 25.5 36 6
LP542730 3.7 380 350 5.7 27.5 31 7.6
LP403026 3.7 260 220 4.3 30.5 27 5.2
LP663448 3.7 1050 950 6.9 34.5 49 21
LP753448 3.7 1350 1250 7.8 34.5 49 27
LP323450 3.7 550 500 3.5 34.5 51 11
LP383450 3.7 720 670 4.1 34.5 51 14.4
LP423450 3.7 660 610 4.2 34 50 13.5
LP503450 3.7 1000 900 5.3 34.5 51 20
LP603450 3.7 1000 950 6.3 34.5 51 20
LP903450 3.7 1500 1450 9.3 34.5 51 31
LP953450 3.7 1800 1700 9.8 34.5 51 36
LP103450 3.7 1850 1750 10.3 34.5 51 37
LP243454 3.7 350 330 3.5 34.5 55 7
LP603455 3.7 1200 1100 6 34 55 24
LP803466 3.7 1900 1800 8.3 34.5 67 38
LP703480 3.7 2100 2000 7.3 34.5 81 42
LP383560 3.7 850 800 4.1 35.5 61 17
LP603560 3.7 1300 1200 6.3 35.5 61 26
LP853560 3.7 1800 1700 8.8 35.5 61 36
LP503759 3.7 1200 1100 5.3 37.5 60 24
LP583759 3.7 1350 1250 6.1 37.5 60 27
LP653759 3.7 1550 1450 6.8 37.5 60 31
LP903759 3.7 2200 2100 9.3 37.5 60 44
LP354261 3.7 800 750 3.8 42.5 62 16
LP804261 3.7 2100 2000 8.3 42.5 62 42

As a professional manufacturer in the lithium battery industry, SER Battery has a variety of lithium polymer batteriess, including

1.  low-temperature lipo battery,

2. high-rate Lipo battery and

3. normal soft-pack Lipo batteries.

Lipo battery and Li-ion battery catalogue(图3)


Applications:

Lipo battery and Li-ion battery catalogue(图4)

Widely used for : Mobile phones /tablets/ laptops/ flashlights/ digital cameras / digital products/LED flashlights/ laser flashlights/outdoor lighting torches/engineering lighting/mining lamps /emergency lights/ electric toys/game consoles/ remote control planes/ Electric tools/cordless household appliances/electric bicycles/electric recreational vehicles/portable audio-visual digital/instrument balance vehicles, scooters, can also be used in automobiles, such as electric vehicles, starting power supplies, and energy storage in power systems superior.


It is the advantages of polymer lithium batteries in terms of safety performance, thickness, weight, capacity, internal resistance, shape, and discharge characteristics that allow lithium batteries to be widely used in drones, remote control models and other fields, and continue to expand the application field. Believe that polymer lithium batteries can be used more in all aspects of our lives in the future.






Hot tags:Lipo battery catalogue,Li-polymer battery catalogue,Lithium polymer battery catalogue,Lipo battery models,Li-polymer battery directory,Li ion polymer Batteries list,lipo battery datasheet,Lithium polymer battery features,Lipo battery technical specifications,Customized,low temperature,manufacturers,suppliers,factory
