| Battery Features: |
LiMnO2 Battery Cylindrical | High Voltage | ||||||||
● Norminal voltage up to 3.3V ● No passivation effect | |||||||||
| High Energy Density | |||||||||
FEATURES
| ● Energy density up to 270 Wh/kg | ||||||||
| Stable Operating Voltage | |||||||||
| ● More than 90% of the capacity could be output at a stable voltage | |||||||||
| Wide Operating Temperature Range | |||||||||
| ● -40°C to +85°C | |||||||||
| Long Shelf Life | |||||||||
● Self discharge rate is less than 2% per year at room temperature ● Glass-to-metal seal ● Bobbin and spiral structure are available for different applications | |||||||||
| TECHNICAL SPECIFICATIONS |
| Cylindrical Battery (Spiral) | |||||||||
| Model | Normal Voltage | Normal Capacity | Diameter | Height | Standard Discharge Current | Max. Current (mA) | Weight | ||
| NO. | IEC Size | V | mAh | mm | mm | mA | Continuous | Pulse | g |
| CR14250 | 1/2AA | 3 | 600 | 14.5 | 25 | 1 | 500 | 1000 | 10 |
| CR14335 | 2/3AA | 3 | 900 | 14.5 | 33.5 | 1 | 800 | 1500 | 14 |
| CR14505 | AA | 3 | 1500 | 14.5 | 50.5 | 1 | 1000 | 2000 | 21 |
| CR2 | – | 3 | 800 | 15.5 | 27 | 1 | 800 | 1500 | 13 |
| CR17335 | 2/3A | 3 | 1500 | 17 | 34.5 | 1 | 1500 | 3000 | 20 |
| CR17450 | – | 3 | 2200 | 17 | 45 | 1 | 1500 | 3000 | 26 |
| CR17505 | A | 3 | 2500 | 17 | 50.5 | 1 | 1500 | 3000 | 30 |
| CR18505 | – | 3 | 2800 | 18.5 | 50.5 | 1 | 1500 | 3000 | 35 |

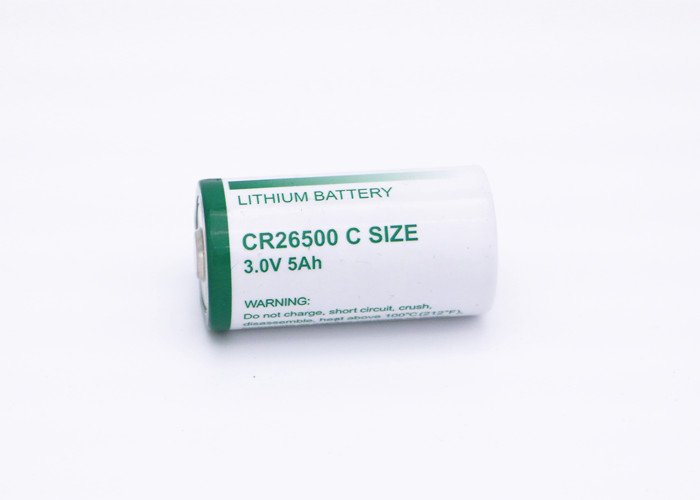

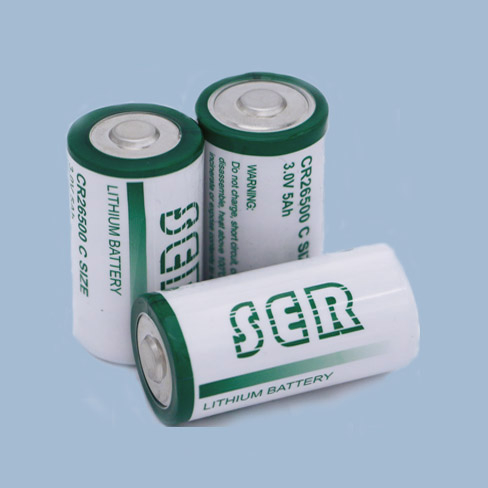

| CR26500 | C | 3 | 5000 | 26 | 50 | 1 | 2000 | 3000 | 62 |
| CR34615 | D | 3 | 11000 | 34 | 61.5 | 10 | 2000 | 3000 | 125 |
| CR-P2 | – | 6 | 1500 | 35.8*19.5*34.8 | 1 | 1500 | 3000 | 42 | |
| CR123A | 123A | 3 | 1500 | 17 | 34.5 | 1 | 1200 | 2500 | 16 |
| CR341245 | DD | 3 | 23000 | 34.2 | 124.5 | 20 | 2000 | 3000 | 270 |
| Cylindrical Battery (Bobbin) | |||||||||
| Model | Normal Voltage | Normal Capacity | Diameter | Height | Standard Discharge Current | Max. Current (mA) | Weight | ||
| NO. | IEC Size | V | mAh | mm | mm | mA | Continuous | Pulse | g |
| CR14250SE | 1/2AA | 3 | 1100 | 14.5 | 25 | 1 | 20 | 100 | 10 |
| CR14505SE | AA | 3 | 2400 | 14.5 | 50.5 | 1 | 50 | 200 | 19.5 |
| CR123ASE | 123A | 3 | 2100 | 17 | 34.5 | 1 | 20 | 100 | 20 |
| Application |
Meter & AMR (Automated Meter Reading), Utility Metering; Medical Electronics, Memory Backup, Tracking Systems;
Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices; Remote Monitory Systems, Electronic Toll Tags,
Scientific Instruments and Military Radio Stations;
Portable Communication Equipment and other electric powered devices requiring small size, high power batteries.
