| Technical Specification: |
| Item | Specification | Remark | |||
| Capacity | Typical | 3000mAh | Measured at 0.2C discharge with 2.75V cut-off voltage, after standard charging | ||
| Minium | 2950mAh | ||||
| Normal Voltage | 3.7 V | Between 3.6V ~3.9V before shipping | |||
| Discharge cut-off Voltage | 2.750 V | ||||
| Max Charge Protection Voltage | 4.23 V | ||||
| Standard discharge current | 0.2C | ||||
| Max discharge current | 1.0C | ||||
| Standard charge current | 0.2C | Charge method: CC-CV (constant current and contant voltage ) | |||
| Max Charge current | 1.0C | ||||
| Diemnsion | 8*50*60mm | ||||
| Multiple Protection functions | Over Charge, Over Discharge,Over Voltage, Short Circuit, Over Current | ||||

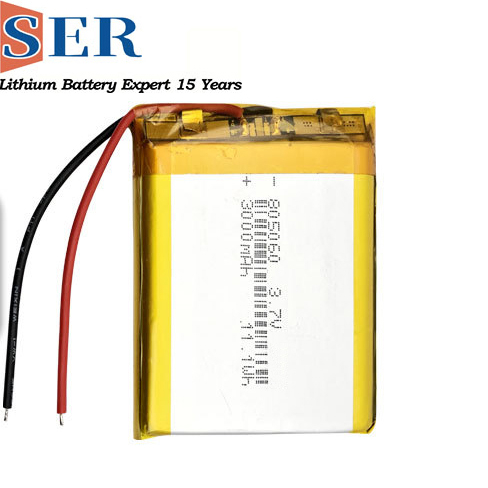

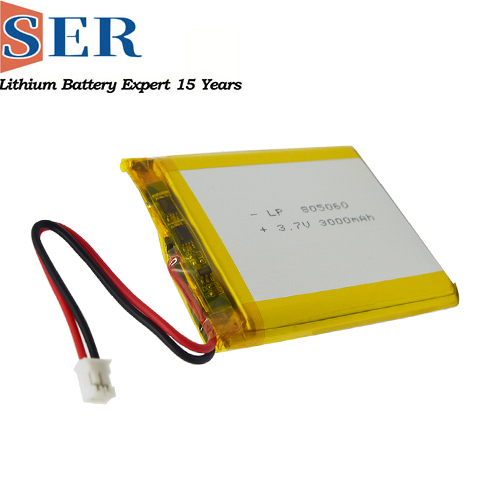

| High light | Lithium polymer battery safety 3.7V Lipo battery LP805060 3000mAh Li ion polymer battery pack rechargeable flat prismatic rectangular battery factory | ||||
| Lithium polymer battery features: |
● High Voltage: Norminal voltage up to 3.8V
● High Energy Density: Energy density up to 550 Wh/kg
● Stable Operating Voltage
More than 90% of the capacity could be output at a stable voltage
● Wide Operating Temperature Range: -20°C to +60°C
● Long cycle Life: More than 500 times
● Customized and flexible size
● Anti-overcharger,short-circuit production(with PCM)
● Low self-discharge
● No memory effect
Visual Inspection:
They should not be any remarkable scratches, cracks,bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell.
Custom Best Lithium Polymer Battery: |
Customized battery shapes and specifications is the best to improve space efficiency, to maximize the efficiency of the product's irregular available space, to meet the needs of the product shape to meet consumer needs. By using the special-shaped Lithium battery manufacturer SER special-shaped batteries, you can make your products in the industry competition, products have more obvious advantages than competitors.
Our experienced engineers and advanced technology will give you safe, excellent and fast design solution, giving your product a competitive edge over competitors.
All we do what we want to help you to start your good idea.
 ConnectorMount Molex/JST connector |
|  PCMShort circuit protection board | |||
 NTC103AT 10K 1%@ +25C B3380 |  Cable WiresCustom wire length change the direction (center/side) | ||||
 Accurate SizeReasonable ± tolerances include room to swell when charging |  Custom ServicesDimension／Capacity／Shape |
| Applications: |
Lear more application of our Lipo battery:
Digital products,Watch Recorder,Paintball Gun,smart mobile phone,electronic products; Miner's lamp,digital products. Portable electric ,Music box; Hair dryer,robot vacumm cleaner,wireless video doorbells; Modality equipment: Digital camera, DV, mobile DVD; Smart manhole covers, stage lights, power tools, smart locks, air purifier, hand warmers, Bluetooth speakers, lamps, massagers, Electronic Toothbrush,USB-C Power Dock,Health Tracking Headband, Super-mini Solar Speaker and so on.
| Production process: |
| Why Choose US: |
Company Advantage | |||||||
|  |  | |||||
With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month. | Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company. | Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service. | |||||
 |  |
| |||||
Efficient and innovative R & D team helps the company lead in product design and superior performance | While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities. | For many years, the professional | |||||
Product Advantage | ||||
| 1. Full range of battery categories 17 years of development, SER have | 2. Safety The perfect protection IC has been used, | 3. Excellent and stable performance Strict control for cleanliness in dust-free | ||
4. OEM & ODM Ability Professional engineers have rich | 5. Technology Our dedicated and experienced engineers team always work together to our customers | 6. Delievry Fast delivery with standard package,will | ||
Hot tags:LP 805060,LP 805060 Battery,3.7V Lipo battery LP805060,LP805060 2600mAh Li ion polymer battery pack,safety Lithium polymer battery 805060,Li ion polymer battery pack 805060,3.7V 2500mAh 805060 Lipo Cells,805060 3.7V 3000mAh Battery For Bluetooth Speaker,805060 Lipo Battery Rechargeable,805060 Polymer Lithium Ion battery,Customized,low temperature,manufacturers,suppliers,factory
