| Battery Features: |

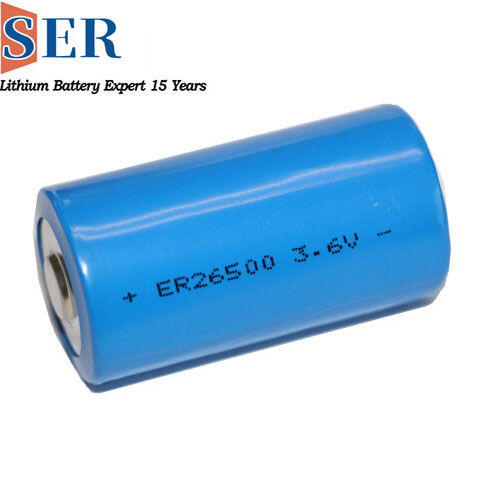

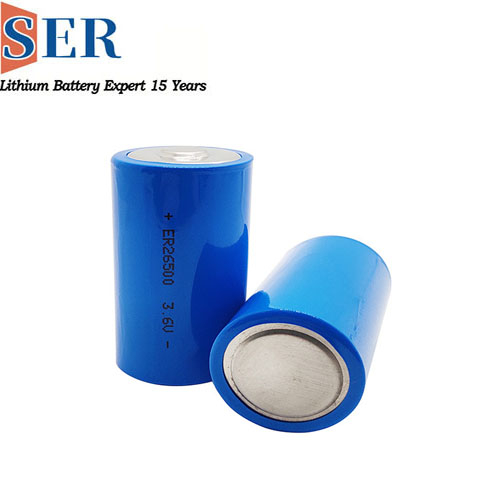

Title: High temperature lithium thionyl chloride battery LiSOCL2 battery ER26500S IEC: C size Nominal Voltage: 3.6 Volt Max.Dimension: 26×50.5mm Weight: 60g Standard Current: 35 mA Continuous Discharge Current: 100 mA Operating Temperature(c): -20~+150 °C Terminate Voltage: 2.0 Volt Available Terminations : S, T, Solder Tabs; P:Axial Pins Standard Terminations Special Termination are aviable upon request |
|

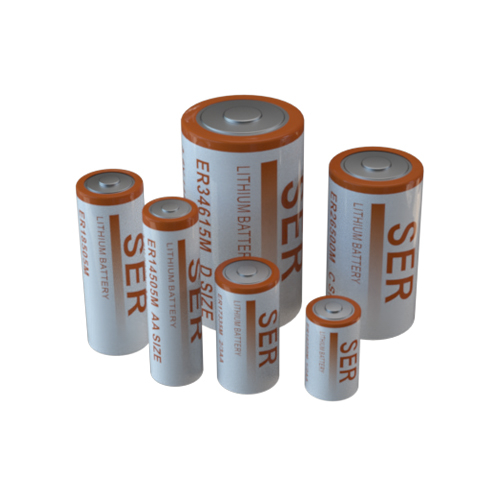

Related products: ER10450S 0.5Ah φ10.0×45.0mm ER14250S 0.7Ah φ14.5×25.0mm ER14335S 1.0Ah φ14.5×33.5mm ER14505S 1.6Ah φ14.5×50.5mm ER17335S 1.7Ah φ17.0×33.5mm ER18505S 2.4Ah φ18.5×50.5mm ER26500S 4.5Ah φ26.0×50.0mm ER26102S 10Ah φ26.0×102.0mm ER34615S 12Ah φ34.0×61.5mm ER34127S 25Ah φ34.0×127mm |
|
| Main Advantages |
High capacity:
The main components use imported raw materials, so that the current international process formula makes the battery reach the same level as that of Japan, Europe and the United States.
Super high temperature performance:
our company's unique special production process original high temperature lithium thionyl chloride battery can work in the environment of 150 ℃.
Long life:
Long-term production inspection and customer use tracking, the life span can reach 10 to 15 years.
Small self-discharge:
After standing at 50℃ for 1 year, the self-discharge is less than 1%.
Safety
Safety valve design and material selection are exquisite, safe and reliable, and make you worry-free on the explosion risk.
Safety, reliability and performance at high temperatures up to 150 °C.
Consistency:
The quality management system is established in the factory according to the ISO9001 system, and strict quality control is implemented in all production. After strict inspection and matching of capacity, internal resistance, discharge platform, self-discharge, and special temperature treatment, the battery capacity is better than Domestic similar products.
| Applications |
In the oil & gas sector, high temperature lithium thionyl chloride battery is suitable for supplying power to logging and monitoring equipment, for example in combination with a generator.
In the field of medical devices, high temperature lithium thionyl chloride battery is suitable for wireless power supply to devices that are hot sterilized. The battery is autoclavable.
In the area of industrial plants, high temperature lithium thionyl chloride battery is suitable, for example, as an energy back-up system for actuators in safety-critical areas where high temperatures occur in the event of a disaster.
The high temperature lithium thionyl chloride battery is also suitable for the monitoring and control of safety-relevant areas or particularly hazardous areas where high ambient temperatures can occur.
such as special instruments and meters for land and offshore oil fields, and meets the technical and safety standards for military applications at home and abroad. Exploration measurement instrument (mills,oil,fields), Date reading instrument, Electronic testing equipment, Sea equipment, Navigation and aviation equipment, Military communcation equipments.
Meter & AMR (Automated Meter Reading), Utility Metering; Medical Electronics, Memory Backup, Tracking Systems; Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices; Remote Monitory Systems, Electronic Toll Tags, Scientific Instruments, Portable Communication Equipment, Military Radio Stations, and other electric powered devices requiring high temperature batteries.
Company Advantage | |||||||
|  |  | |||||
With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month. | Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company. | Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service. | |||||
 |  |
| |||||
Efficient and innovative R & D team helps the company lead in product design and superior performance | While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities. | For many years, the professional | |||||
Product Advantage | ||||
| 1. Full range of battery categories 17 years of development, SER have | 2. Safety The perfect protection IC has been used, | 3. Excellent and stable performance Strict control for cleanliness in dust-free | ||
4. OEM & ODM Ability Professional engineers have rich | 5. Technology Our dedicated and experienced engineers team always work together to our customers | 6. Delievry Fast delivery with standard package,will | ||
Hot tags:ER26500S,High temperature ER26500,li-socl2 battery ER26500S,Lisocl2 battery ER26500S,high temperature lithium thionyl chloride battery,150 degree ER26500,3.6V high-temperature battery ER26500S,C size high temperature battery,3.6v lisocl2 battery ER26500S,Customized,low temperature,manufacturers,suppliers,factory
