Recommended battery model parameters:

Battery model: Super capacitor Lisocl2 battery ER26500+HPC1550

Battery brand: SER

Battery performance index

1. Battery capacity: (23±2℃, 2.0mA/2.0V) 9000mAh

2. Open circuit voltage: ≥3.64V

3. Load voltage: (8Ω, 20±5℃, time ≤10s) ≥3.20V

4. Continuous working currents: (20±5℃) 1000mA

5. Large pulse working current: (20±5℃) 5000mA

6. Operating temperature range: -55~+85℃

7. Battery storage life: 10 years

Advantages of Supercapacitor Battery or capacitor batteries:

1, The battery charging speed is faster: the battery charging ten seconds to ten minutes can reach more than 95 percent of its rated capacity.

2, High efficiency, high energy ratio: large power energy, can instantly form large energy, tip discharge in the whole process of small loss, fast energy cycle is equivalent to about five times more than the battery.

3, The discharge efficiency is fast and charging resistance: ultra-high temperature resistance, can continue to work at high temperature of 75 degrees Celsius, can also continue to work at ultra-low temperature of -40 degrees Celsius.

4, Long service life without memory effect: long cycle service life, deep charge and discharge cycle application frequency up to 1~ 500,000 times, no “memory effect”.

5, Super capacitor capacitor battery production raw material green environmental protection: raw material structure natural pollution-free, the production of waste will not form harmful objects, is a very ideal green environmental protection battery.

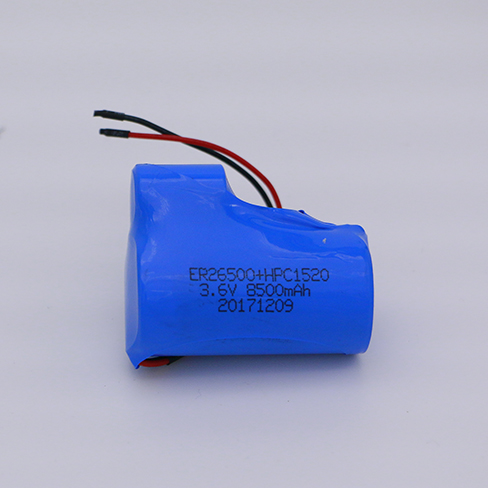

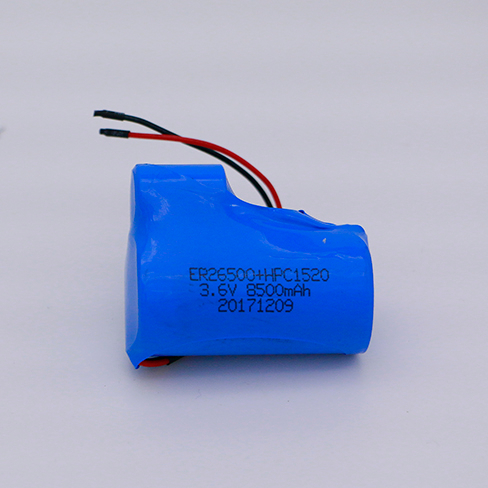

Working principle of 3.6V Lisocl2 battery Super capacitor battery ER26500+upc1550+SLC1520/RHC1520 / upc1520 /hpc1520 composite pack

(1) The battery is assembled in parallel with the RHC/UPC/EPC/HPC/SLC composite capacitor. The battery is a LiSOCL2 battery energy type with higher safety;

(2) The high pulse discharge is completed by the RHC/UPC/EPC/HPC/SLC composite capacitor, and the capacitor has no voltage hysteresis and no passivation effect;

(3) All high-pulse discharges are completed by the RHC/UPC/EPC/HPC /SLCcomposite capacitor. Before the next pulse comes, the capacitor is fully charged again. After the capacitor is fully charged, the discharge capacity remains unchanged until the battery capacity is exhausted, which can ensure the discharge capacity of the battery pack;

Related products:

ER14250+UPC1520    1200mAh     Max pulse current 2000mA

ER14505+UPC1520    2500mAh     Max pulse current 2000mA

ER17505+UPC1520    3600mAh     Max pulse current 2000mA

ER18505+UPC1520    4000mAh     Max pulse current 2000mA

ER26500+UPC1520    8500mAh     Max pulse current 2000mA

ER26500+UPC1550    8500mAh     Max pulse current 5000mA

ER34615+UPC1550   19000mAh    Max pulse current 5000mA

Smart Instrumentation

  Memory and backup power wireless alarm and remote tracking monitoring system

   Electronic toll collection system

   Military equipment

   Automotive Electronics

   Professional Electronics

   Tracking equipment

The application of 3.6V Lisocl2 battery Super capacitor battery ER17505 to NB-iot wireless module has mature practical application data
