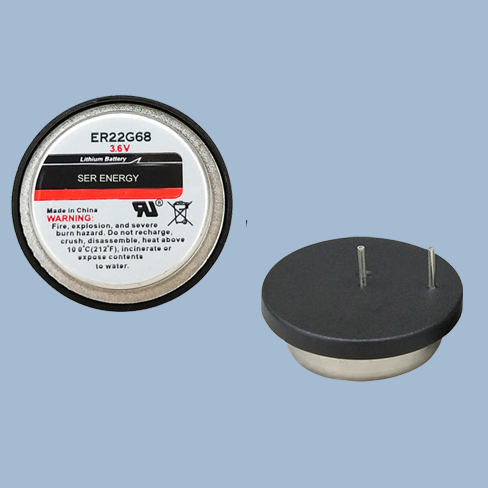

Primary wafer Cells buckle type 3.6V ER22G68 Non-Rechargeable (Primary) Li-SOCl2 Battery ER22G68

3.6v Non-Rechargeable coin Lithium Thionyl Chloride ER22G68 Button Cell er22G68 Batteries

Recommended battery model parameters:

Battery model: Wafer Cells ER22G68/ buckle type ER22g68/Button Cell er22G68/ Coin Li-SOCl2 ER22G68/TL5186

Battery brand: SER

Battery performance index

1. Battery capacity: (23±2℃, 2.0mA/2.0V) 400mAh

2. Open circuit voltage: ≥3.64V

3. Load voltage: (8Ω, 20±5℃, time ≤10s) ≥3.20V

4. Continuous working currents: 5mA （at 25℃ 2.0V cut  off）

5. Large pulse working current:  20mA

6. Operating temperature range: -55~+125℃

7. Battery storage life: 10 years

  （Storange condition: clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated.）

Warning:

Do not recharge, short circuit, crush, disassemble, heat above +125℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.

1. High and stable working voltage

The standard voltage is 3.6V and the working voltage maintains an obvious stability during the entire service life; more than 90% of the battery capacity is output on a high-voltage platform with almost constant voltage;

2. Wide temperature range

Can be used at temperatures between -55°C and 125°C.

3. High energy density

The specific energy of lithium-thionyl chloride battery is as high as 700Wh/kgL.

4. Better storage life and reliability

With particularly low self-discharge characteristics, the annual self-discharge rate is less than 1%, and the shelf life of the battery

has been confirmed to be stored for more than 10 years at room temperature.

5, good security, safety

Does not contain mercury, cadmium, lead and other heavy metals, no environmental hazards.

a.    Mainly used in the civil field: AMR and CMOS circuit boards for public instruments

b.    Various smart meters; smart electricity meters, water meters, heat meters, gas meters

c .    Memory and backup power supply: memory backup, clock power supply, data backup power supply

d .    Radio alarms/sensors: smoke alarms, temperature monitors

e .    remote monitoring system: positioning device, marine telemetry system

f .     Automotive electronics: automotive tire pressure monitoring system (TPMS), braking system

g.     Industrial field: microcomputer control system, tax control machine, automated instrumentation and equipment, oil wells, mines, medical equipment, burglar alarms, wireless communications, marine lifesaving, etc.

h .    Modern military fields: aviation, aerospace, marine electronics, amphibious weapons, etc.
