| Battery Description: |

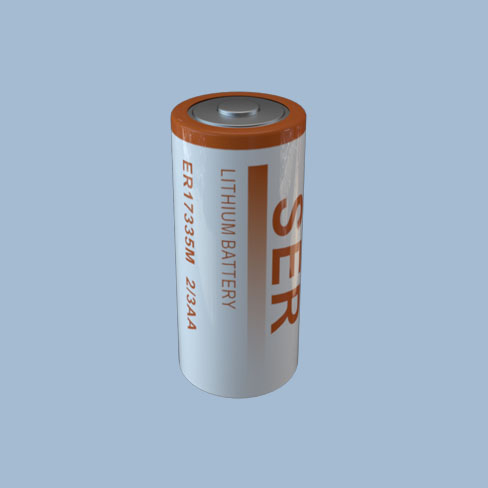

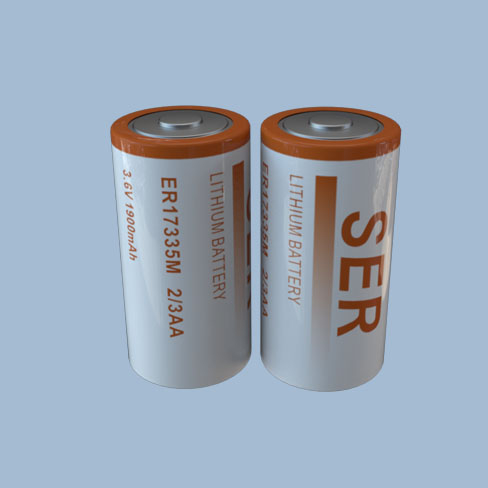

Battery Model: | ER17335M | Battery Brand: | SER or OEM | |
Battery Capacity: | 1900mAh ( at 0.5mA,under 25℃, 2.0V cut-off) | Dimension: | 17 x 33.5mm | |
Open Circuit Voltage: | ≥3.66V | Load Voltage: | ≥3.2V | |
Max continuous current | 400mA ( with 25℃, 2.0V cut-off) | Max Discharge current | 800mA(1s pulse to 3.0V) | |
Working temperature: | -55~+85℃ | Storage Life: | 10 years | |
Storage condition: | clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated | |||
| Applications: | PLC system,ETC system,Alarm System,Utility Meters, real-time clock,CMOS board memory and backup power, data backup, smart meter, heat meter, electronic measuring instrument, real-time monitoring system, flow meter, tax control machine, GPS tracking system | |||
High light: | ER17335 2/3A Lisocl2 lithium metal battery custom battery with wire tabs tags 3.6 volt pin battery pack Safety ER17335M high drain lithium primary Lisocl2 battery Non-rechargeable lithium thionyl chloride safety batteries | |||
| Key Features: |
1. High Voltage,
The rated voltage is 3.6V, which is the highest voltage in the current non-rechargeable lithium battery series;
2. Stable working voltage
At room temperature and medium current discharge, the discharge curve is extremely flat and stable; more than 90% of the battery capacity is output on a high-voltage platform with almost constant voltage;
3. Wide temperature range
Can be used at temperature between -55°C ~ 85°C.The capacity at -40°C is about 50% of the standard capacity, showing excellent high and low temperature performance; High temperature range is -40～+150℃.
4. High energy density
The specific energy of lithium-thionyl chloride battery is as high as 700Wh/kgL
5. Better storage life and reliability
With particularly low self-discharge characteristics, less than 1% per year, and the shelf life of the battery has more than 10 years at room temperature.
6. Hermetic glass-to-metal sealing
The manufacturing process of stainless steel shell and metal-glass hermetic welded structure.
7. Good security, safety
Does not contain mercury, cadmium, lead and other heavy metals, Non-flammable electrolyte, no environmental hazards.

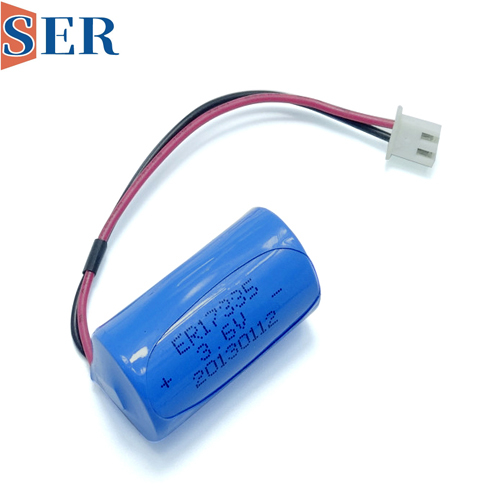

8. ER17335 Lithium Thionyl Chloride cell are available to order with a wide variety of solder pins, solder tags, axial wires,
and polarized solder Pin.
In all,The ER17335 Lisocl2 battery is a non-rechargeable lithium battery measuring 17 * 33.5 mm and is one of the ER series batteries. It has a high voltage of 3.6V and a high capacity of 1900mAh, and the battery discharge voltage is very stable, and can work in high temperature and low temperature environment, and the performance is superior. These batteries are also very environmentally friendly because they do not contain heavy metals.
| Applications |
| Main applications: |
a. Mainly used in the civil field: PLC system,ETC system,Alarm System,Utility Meters, real-time clocks
b. Various smart meters; smart electricity meters, water meters, heat meters, gas meters
c . Memory and backup power supply: memory backup, clock power supply, data backup power supply
d . Radio alarms/sensors: smoke alarms, temperature monitors
e . remote monitoring system: positioning device, marine telemetry system
f . Automotive electronics: automotive tire pressure monitoring system (TPMS), braking system
g. Industrial field: microcomputer control system, tax control machine, automated instrumentation and equipment, oil wells, mines, medical equipment, burglar alarms, wireless communications, marine lifesaving, etc.
h . Modern military fields: aviation, aerospace, marine electronics, amphibious weapons, etc.
i . AMR and CMOS circuit boards for public instruments
Non-Rechargeable (Primary) Lithium Thionyl Chloride Battery:
Energy-type Lithium Thionyl Chloride battery (including standard energy type and high-capacity type) generally works continuously for a long time with micro-current, and can provide medium-current pulses, and the working time can be as long as 8 years
Power-type Lithium Thionyl Chloride battery can be designed in different ways according to different uses. Generally, it mainly provides high current or high pulse current. At the same time, it can work continuously for a long time with low current, and the working time can reach 8 years;
High temperature Lithium Thionyl Chloride battery can be used in the temperature range of -40~125℃.
Company Advantage | |||||||
|  |  | |||||
With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month. | Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company. | Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service. | |||||
 |  |
| |||||
Efficient and innovative R & D team helps the company lead in product design and superior performance | While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities. | For many years, the professional | |||||
Product Advantage | ||||
| 1. Full range of battery categories 17 years of development, SER have | 2. Safety The perfect protection IC has been used, | 3. Excellent and stable performance Strict control for cleanliness in dust-free | ||
4. OEM & ODM Ability Professional engineers have rich | 5. Technology Our dedicated and experienced engineers team always work together to our customers | 6. Delievry Fast delivery with standard package,will | ||
Hot tags:ER17335M,ER17335M battery,Lithium Primary Battery Safety ER17335M,ER17335M 3.6V battery,High current ER17335M,bobbin type er17335,ER17335M 3.6v 2/3a,Power battery ER17335,ER17335M 3.6 volt Cylindrical Non-rechargeable Battery,Customized,low temperature,manufacturers,suppliers,factory
