1. High and stable operating voltage

3.6 V rated voltage; operating voltage is 3.3V~3.4V in normal temperature, and 3.5V~3.6V In high temperature. Because the electrochemical reaction of positive pole is heterogeneous reaction, the dischargeing curve is very stable until the capacity is almost exhausted when the curve changes a lot;

2. Low self-discharge rate

Anual self discharge rate lower than 1% at +25 °C; Due to its full-sealing structure, it can be stored for more than 10 years;

3. High energy density

The specific energy of lithium-thionyl chloride battery is as high as 700Wh/kgL

4. Wide operating temerature range;

Can be used at temperature between -55°C ~ 85°C;  High temperature range is -40～+150℃.

5. Hermetic glass-to-metal sealing

The manufacturing process of stainless steel shell and metal-glass hermetic welded structure.

6. Good security, safety

Does not contain mercury, cadmium, lead and other heavy metals, Non-flammable electrolyte, no environmental hazards.

8.  ER17335 Lithium Thionyl Chloride cell are available to order with a wide variety of solder pins, solder tags, axial wires,

and polarized solder Pin.

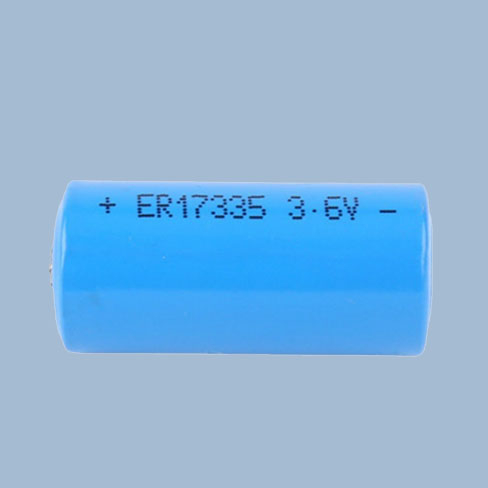

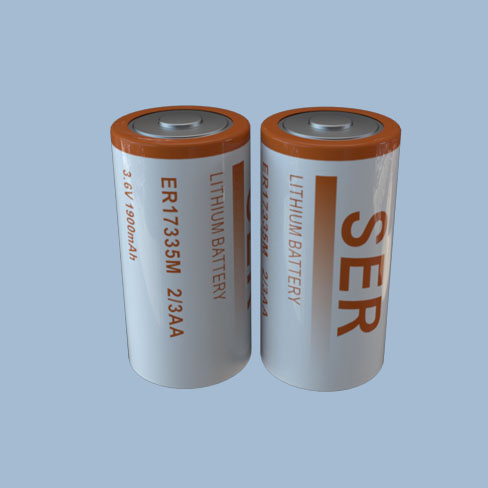

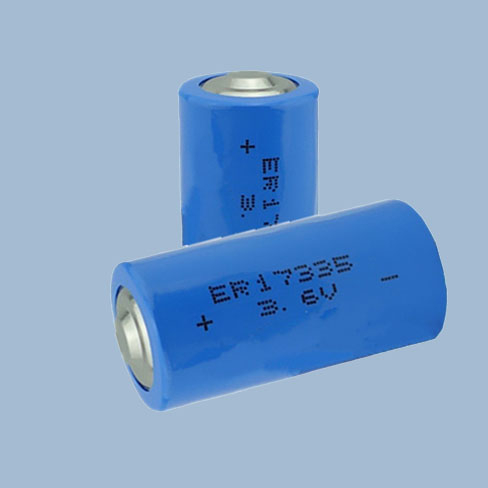

In all,The ER17335 Lisocl2 battery is a non-rechargeable lithium battery measuring 17 * 33.5 mm and is one of the ER series batteries. It has a high voltage of 3.6V and a high capacity of 2200mAh, and the battery discharge voltage is very stable, and can work in high temperature and low temperature environment, and the performance is superior. These batteries are also very environmentally friendly because they do not contain heavy metals.

Warning:

Do not recharge, short circuit, crush, disassemble, heat above +125℃,

incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.

The ER17335 lithium battery has a wider operating temperature than other lithium-ion batteries, and is easy to store, has a very low self-discharge rate, and has high energy density and high voltage. Can be applied to portable GPS systems, power tools, cameras, smart meters and smart water meters.

a.    Mainly used in the civil field: PLC system,ETC system,Alarm System,Utility Meters, real-time clocks

b.    Various smart meters; smart electricity meters, water meters, heat meters, gas meters

c .    Memory and backup power supply: memory backup, clock power supply, data backup power supply

d .    Radio alarms/sensors: smoke alarms, temperature monitors

e .    remote monitoring system: positioning device, marine telemetry system

f .     Automotive electronics: automotive tire pressure monitoring system (TPMS), braking system

g.     Industrial field: microcomputer control system, tax control machine, automated instrumentation and equipment, oil wells, mines, medical equipment, burglar alarms, wireless communications, marine lifesaving, etc.

h .    Modern military fields: aviation, aerospace, marine electronics, amphibious weapons, etc.

i  .    AMR and CMOS circuit boards for public instruments

Non-Rechargeable (Primary) Lithium Thionyl Chloride Battery:

Energy-type Lithium Thionyl Chloride battery (including standard energy type and high-capacity type) generally works continuously for a long time with micro-current, and can provide medium-current pulses, and the working time can be as long as 8 years

Power-type Lithium Thionyl Chloride battery can be designed in different ways according to different uses. Generally, it mainly provides high current or high pulse current. At the same time, it can work continuously for a long time with low current, and the working time can reach 8 years;

High temperature Lithium Thionyl Chloride battery can be used in the temperature range of -40~125℃.
