| Battery Description: |

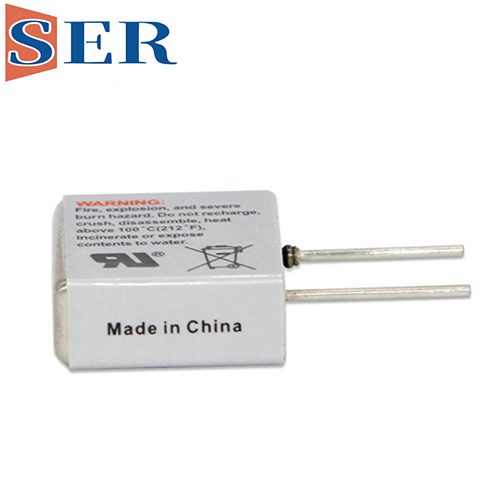

Battery Model: | EF651615 / LTC-3PN / BL-3PN | Battery Brand: | SER or OEM | |
Battery Capacity: | 400mAh ( at 0.5mA,under 25℃, 2.0V cut-off) | Dimension: | 16.85*17.8*14.6mm | |
Open Circuit Voltage: | ≥3.6V | Load Voltage: | ≥3.2V | |
Max continuous discharge current | 5mA ( to get 50% of capacity with 25℃, 2.0V cut-off) | Max Discharge current | 20mA(1s pulse to 3.0V) | |
Working temperature: | -55~+85℃ | Storage Life: | 10 years | |
Storage condition: | clean, cool (preferably below +20℃, not exceeding +30℃), dry and ventilated | |||
| Applications: | Water counters, gas meters,electronic meters,CMOS memory backup,utility meters,Emergency backup,automatic meter reading,tracking systems,earthquake detectors,Smoke detectors | |||
High light: | EF651615 3.6V Non-rechargeable lithium thionyl chloride Prismatic Battery with 4 U solder pins terminals EF651615 Customize 3.6V ( LISOCL2) Prismatic primary battery LTC-3PN with pins terminals | |||
Compatibility: LTC-3PN, BL-3PN,EF651615
| Main Features: |
1. High and stable working voltage
The standard voltage is 3.6V and the working voltage maintains an obvious stability during the entire service life; more than 90% of the battery capacity is output on a high-voltage platform with almost constant voltage;
2. Wide temperature range
Can be used at temperatures between -55°C and 85°C.
3. High energy density
The specific energy of lithium-thionyl chloride battery is as high as 700Wh/kgL.
4. Better storage life and reliability
With particularly low self-discharge characteristics, the annual self-discharge rate is less than 1%, and the shelf life of the battery
has been confirmed to be stored for more than 10 years at room temperature.
5. Hermetic glass-to-metal sealing
The manufacturing process of stainless steel shell and metal-glass hermetic welded structure.
6. good security, safety
Does not contain mercury, cadmium, lead and other heavy metals, Non-flammable electrolyte, no environmental hazards.
Warning:
Do not recharge, short circuit, crush, disassemble, heat above +125℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
| Applications |
| Main applications: |
a. Mainly used in the civil field: PLC system,ETC system,Alarm System,Utility Meters, real-time clocks
b. Various smart meters; smart electricity meters, water meters, heat meters, gas meters
c . Memory and backup power supply: memory backup, clock power supply, data backup power supply
d . Radio alarms/sensors: smoke alarms, temperature monitors
e . remote monitoring system: positioning device, marine telemetry system
f . Automotive electronics: automotive tire pressure monitoring system (TPMS), braking system
g. Industrial field: microcomputer control system, tax control machine, automated instrumentation and equipment, oil wells, mines, medical equipment, burglar alarms, wireless communications, marine lifesaving, etc.
h . Modern military fields: aviation, aerospace, marine electronics, amphibious weapons, etc.
i . AMR and CMOS circuit boards for public instruments
Company Advantage | |||||||
|  |  | |||||
With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month. | Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company. | Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service. | |||||
 |  |
| |||||
Efficient and innovative R & D team helps the company lead in product design and superior performance | While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities. | For many years, the professional | |||||
Product Advantage | ||||
| 1. Full range of battery categories 17 years of development, SER have | 2. Safety The perfect protection IC has been used, | 3. Excellent and stable performance Strict control for cleanliness in dust-free | ||
4. OEM & ODM Ability Professional engineers have rich | 5. Technology Our dedicated and experienced engineers team always work together to our customers | 6. Delievry Fast delivery with standard package,will | ||
Hot tags:EF651615,EF651615 Battery,3.6V LISOCL2 battery,3.6V primary battery,Prismatic primary battery,LTC-3PN,BL-3PN,3.6V Battery EF651615,Lithium Battery 3.6V 400mAh EF651615,EF651615 Non-standard battery,Customized,low temperature,manufacturers,suppliers,factory
