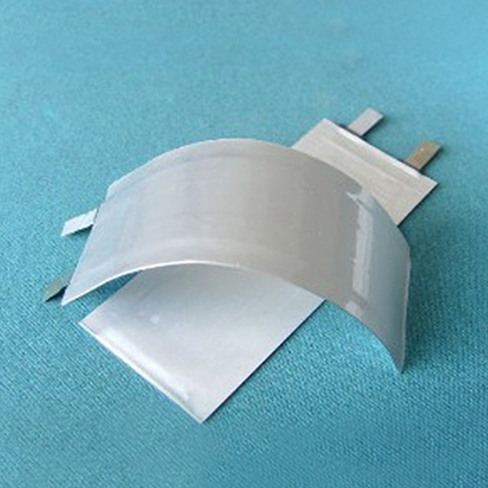

| Custom made lithium primary battery CP7835128 3.0v long strip Less common ultra thin bamboo limno2 batteries flexible paper battery 3.0V non rechargeable Custom shaped battery Irregular flat cell abnormity pouch hetero battery Specially shaped Limno2 Battery |
Ultra thin Batteries | Excellent safety performance | ||||||||
● Once a safety hazard occurs, the liquid battery is easy to explode, while the polymer battery will only blow up at best. | |||||||||
| Thin thickness | |||||||||
Advantages
| ● The thickness can be less than 0.4mm, which meets the needs of current wearable devices. | ||||||||
| Light weight | |||||||||
| ● The weight of polymer battery is 40% lighter than steel shell lithium battery of the same capacity and 20% lighter than aluminum shell battery. | |||||||||
| Large capacity | |||||||||
| Small internal resistance | |||||||||
| The shape can be customized | |||||||||
Excellent discharge and charge characteristics | |||||||||
| Customized battery Advantages |
Customized battery shapes and specifications is the best to improve space efficiency, to maximize the efficiency of the product's irregular available space, to meet the needs of the product shape to meet consumer needs. we have many custom shaped battery, Irregular flat cell,abnormity bamboo battery,specially shaped Battery, long strip battery, ultra thin paper battery,Less common custom flexible lithium primary battery.
By using the special-shaped Lithium battery manufacturer SER special-shaped batteries, you can make your products in the industry competition, products have more obvious advantages than competitors. our experienced engineers and advanced technology will give you safe, excellent and fast design solution, giving your product a competitive edge over competitors.
TECHNICAL SPECIFICATIONS |

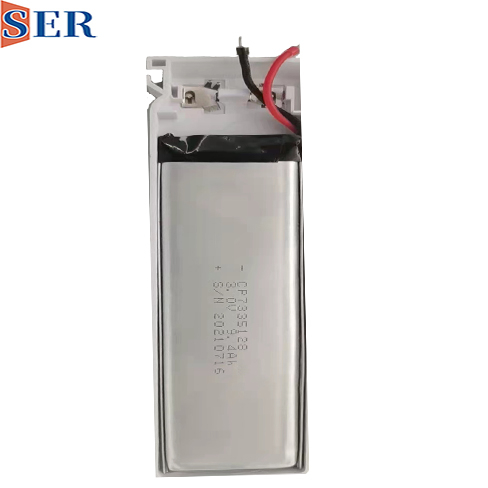

Battery model: CP7835128
Battery brand: SER
Battery performance index
1. Battery capacity: (23±2℃, 0.5 mA/2.0V) 9400mAh
2. Open circuit voltage: ≥3.0V
3. Cut-off voltage: 2.0V
4. Max Continuous working currents: 50mA
5. Max pulse working current: 200mA
6. Max dimension: 7.8*35*128mm
7. Operating temperature range: -20~+60℃
8. Battery storage life: 5 years (Storange: clean, below +20℃, dry and ventilated.）
Warning:
Do not recharge, short circuit, crush, disassemble, heat above +100℃, incinerate,or expose contents to water. Dispose of used batteries properly in case of explosion, burn and leakage.
APPLICATIONS |
Main applications:
| 1. Nonstop charging system; | 2. Intelligent parking lot; |
| 3. Container identification; | 4. Vehicle charge check; |
| 5. Mine personnel identification; | 6. Automated railcar identification management; |
| 7. Automated road charge management; | 8. Automated voyage passengers luggage identification; |
| 9. Vehicle entry and exit control; | 10.Compus all-purpose card; |
| 11.Repasting card and public transportation card; | 12.Associator card, drive license card, and health card; |
| 13.Animal identification(raising cattle, sheep, pigeon,etc); | 14.Automate management of logistic and storage; |
| 15.Automobile remote control lock; | 16.Intellectualized door etc. |
| PRODUCTION PROCESS |
Company Advantage | |||||||
|  |  | |||||
With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month. | Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company. | Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service. | |||||
 |  |
| |||||
Efficient and innovative R & D team helps the company lead in product design and superior performance | While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities. | For many years, the professional | |||||
Product Advantage | ||||
| 1. Full range of battery categories 17 years of development, SER have | 2. Safety The perfect protection IC has been used, | 3. Excellent and stable performance Strict control for cleanliness in dust-free | ||
4. OEM & ODM Ability Professional engineers have rich | 5. Technology Our dedicated and experienced engineers team always work together to our customers | 6. Delievry Fast delivery with standard package,will | ||
Hot tags:CP7835128,CP7835128 Battery,lithium primary battery 3.0v,3.0v long strip shape battery,bamboo limno2 batteries,Specially shaped Limno2 Battery,Limno2 hetero battery 3.0v,rectangular shape battery 3.0V,limno2 batteries 3.0V,primary lithium batteries 3.0V,Customized,low temperature,manufacturers,suppliers,factory
