CP503742

CP503742 Li-MnO2 battery flexiable lithium battery ultra thin CP503742 limno2 battery 3v 2000mah
Products DescriptionNamesSpecificationsTypeLithium Manganese batteryNominal voltage3.0VNominal Capacity3000mAhDimension50*50*
Availability:

Customized Lipo Battery Factory Price 3.7V 603450 Rechargeable Lithium Polymer Battery for Led lamp(图1)


Products Description
Names
Specifications
Type
Lithium Manganese battery
Nominal voltage
3.0V
Nominal Capacity
1900mAh
Dimension
5.0*37*42mm
Mode
CP503742
Max.continuous current
800mA
Max.pulse current
1000mA
Discharge cut-off voltage
2.0V
Operating temperature
-40°C~+70 °C
Storage temperature
25°C
Application
PDA, tablet PC, e-book, MID, mine lamp, headset,MP3,MP4,MP5, power bank and so on.
High Light
CP503742 Li-MnO2 battery flexiable lithium battery ultra thin CP503742 limno2 battery 3v 2000mah for electronic tag


Product Advantage

1. Li-MnO2 Soft Batteries

2. High Voltage up to 3.0V

3. High Energy Density up to 450Wh/kg

4. Wide Operating Temperatue Range

5. Long Shelf Life, can be ten years

6. Variable Deisgn, light weight

7. Greater Safety to meet customers' requirement for special applications..


APPLICATIONS

Wireless Communication

Digital Temperature Monitoring System

Healthcare

IoT, Wireless Sensor

RF Protocol-stack Design

Tags, RTLS Tags and Smartphones

Smartstain, Meta Cases, Smartbox

Card Readers, Transfer Trays,

Security Doors

Banknote Counters

SMS /Audio /Visual Alarms

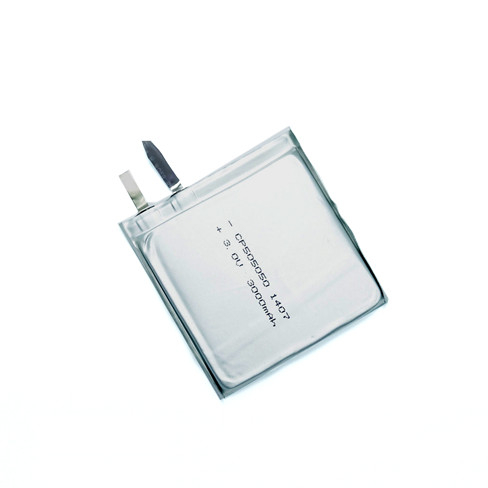

CP505050 Battery 3.0V soft square LiMnO2 Lithium Battery ultra thin primary battery(图2)

Production Flow

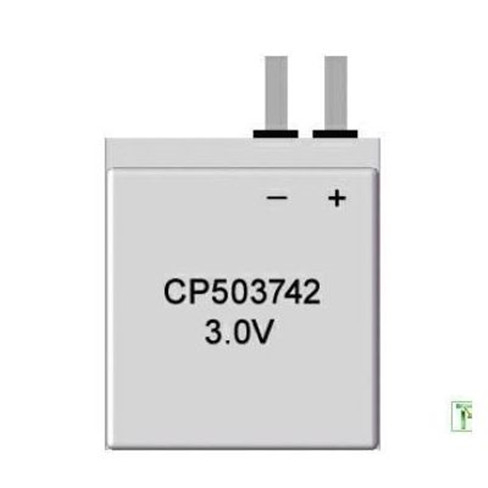

Customized Lipo Battery Factory Price 3.7V 603450 Rechargeable Lithium Polymer Battery for Led lamp(图3)

Certifications

CP505050 Battery 3.0V soft square LiMnO2 Lithium Battery ultra thin primary battery(图4)

Who we are


Customized Lipo Battery Factory Price 3.7V 603450 Rechargeable Lithium Polymer Battery for Led lamp(图5)

CP503742 Li-MnO2 battery flexiable lithium battery ultra thin CP503742 limno2 battery 3v 2000mah for electronic tag


FAQ

Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc
for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:1 year warranty


We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC applications.

NO MOQ with fast lead time.

Welcome for any customized.

Thanks.
