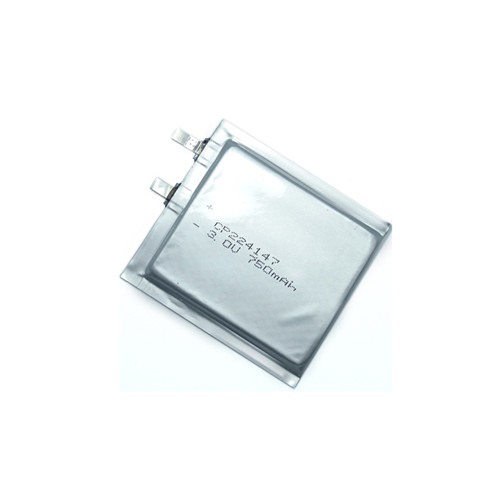

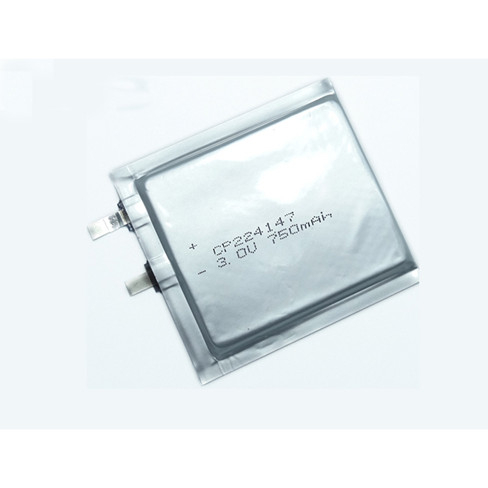

CP224147

CP224147 Non rechargeable Lithium Manganese soft packaging thin cell CP224147 3.0v LiMnO2 Customized
Products DescriptionNamesSpecificationsTypeLithium Manganese batteryNominal voltage3.0VNominal Capacity3000mAhDimension50*50*
Availability:

Customized Lipo Battery Factory Price 3.7V 603450 Rechargeable Lithium Polymer Battery for Led lamp(图1)


Products Description
Names
Specifications
Type
Lithium Manganese battery
Nominal voltage
3.0V
Nominal Capacity
750mAh
Dimension
2.2*41*47mm
Mode
CP224147
Max.continuous current
500mA
Max.pulse current
1200mA
Discharge cut-off voltage
2.0V
Operating temperature
-40°C~+70 °C
Storage temperature
25°C
Application
PDA, tablet PC, e-book, MID, mine lamp, headset,MP3,MP4,MP5, power bank and so on.
High Light
CP224147 Non rechargeable Lithium Manganese soft packaging thin cell CP224147 3.0v LiMnO2 Customized battery


Product Advantage

1. Li-MnO2 Soft Batteries

2. High Voltage up to 3.0V

3. High Energy Density up to 450Wh/kg

4. Wide Operating Temperatue Range

5. Long Shelf Life, can be ten years

6. Variable Deisgn, light weight

7. Greater Safety to meet customers' requirement for special applications..


APPLICATIONS

Wireless Communication

Digital Temperature Monitoring System

Healthcare

IoT, Wireless Sensor

RF Protocol-stack Design

Tags, RTLS Tags and Smartphones

Smartstain, Meta Cases, Smartbox

Card Readers, Transfer Trays,

Security Doors

Banknote Counters

SMS /Audio /Visual Alarms

CP505050 Battery 3.0V soft square LiMnO2 Lithium Battery ultra thin primary battery(图2)

Production Flow

Customized Lipo Battery Factory Price 3.7V 603450 Rechargeable Lithium Polymer Battery for Led lamp(图3)

Certifications

CP505050 Battery 3.0V soft square LiMnO2 Lithium Battery ultra thin primary battery(图4)

Who we are


Customized Lipo Battery Factory Price 3.7V 603450 Rechargeable Lithium Polymer Battery for Led lamp(图5)

CP224147 Non rechargeable Lithium Manganese soft packaging thin cell CP224147 3.0v LiMnO2 Customized battery


FAQ

Q1. Can I have a sample order?
A. Yes, we welcome sample order to test and check quality.

Q2. What about the lead time?
A. Sample needs 3 days, mass production time needs 5-7 weeks, it depends on order quantity.

Q3. Do you have any MOQ limit?
A. Yes, we have MOQ for mass production, it depends on the different part numbers. 1~10pcs sample order is available. Low MOQ, 1pc
for sample checking is available.

Q4. How do you ship the goods and how long does it take to arrive?
A. It usually takes 5-7 days to arrive. Airline and sea shipping is also optional.

Q5. How to proceed with an order?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.

Q6. Is it OK to print my logo on the product?
A. Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q7.Which certificates do you have?
A:We have CE/FCC/ROHS/UN38.3/MSDS ...etc.

Q8.How about warranty?
A:1 year warranty


We can make Li-MnO2 soft battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC applications.

NO MOQ with fast lead time.

Welcome for any customized.

Thanks.





Hot tags:CP224147,CP224147 Battery,Ultra-thin battery CP224147,CP224147 3.0v LiMnO2,Primary Lithium Battery CP224147,Limno2 battery CP224147,Cp224147 3v 750mah,Ultra Thin Lithium Battery Cp224147 3v,cp224147 3V soft pack lithium battery,CP224147 square battery,Customized,low temperature,manufacturers,suppliers,factory
