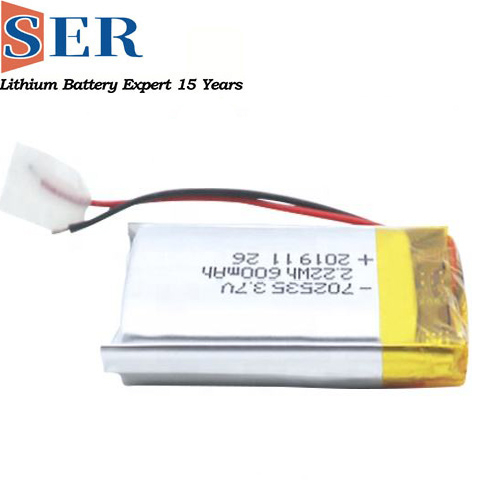

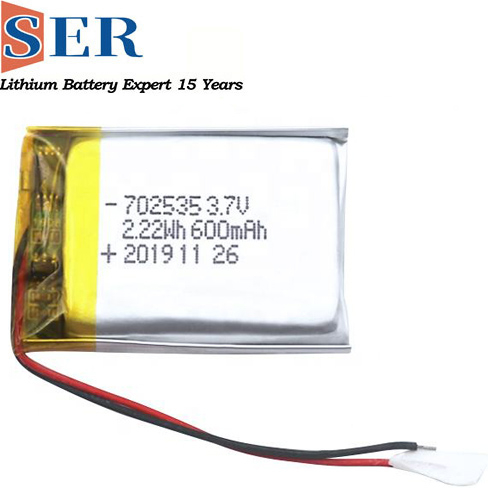

| Specification of Lithium pouch battery Lipo 702535: |
Specification | Parameters | Lithium pouch battery Lipo 702535 |
Nominal | Voltage | 3.7V |
Capacity | 600mAh @ 0.2C to 3.0 V @ 23° C | |
Dimension | 7.2*25*37mm | |
Electrical | Constant Discharge Current | 300mA |
Max Discharge Current | 600 mA | |
Physical | Terminals/ Connector | Nickel Tabs, wire, plug or OEM |
Others | Working Temperature | -20-60℃ |
Storage Temperature | 0~35℃ | |
Protection Functions (PCM) | Over charge, Over discharge, Over load, Short Circuit protection | |
High Light | 702535 3.7V Small Rechargeable Li-polymer Battery LP702535 600mAh for Wearable Device | |
| Features of lithium pouch battery / lipo battery / Li-polymer battery: |
1. High energy density lithium pouch battery.
2. Long life cycle of charging & discharging, more than 500 cycles.
3. Enhanced safety with Japan IC & MOS protectors.
4. Thinner design & lighter weight with aluminum-plastic composite.
5. OEM & ODM services for special size of lithium polymer battery.
6. Easy to assemble with mounted connectors (Molex, Tyco and so on).
7. Rigorous testing to ensure the quality of all lithium polymer batteries.
8. Most inportant: competitive price.
9. Dual IC chips, that can anti-shortcircuit, anti-overcharger, anti-overcurrent, anti-overload
Besides: this battery is really the latest state of the art technology in rechargeable. It is extremely thin, light weight and super thin compared to any rechargeable chemistry. Low weight, small size but huge capacity. The other advantage of the lithium polymer technology is the very low self discharge.
Multiple Protection functions:
| Product Catalogue: |
| Model | Nominal Voltage(V) | Nominal(mAh) | Dimension(mm) | Approx. Weight (g) | |||
| Typical | Mini | Thickness | Width | Height | |||
| LP301230 | 3.7 | 70 | 60 | 3.5 | 12.5 | 31 | 1.4 |
| LP401230 | 3.7 | 100 | 90 | 4.3 | 12.5 | 31 | 2 |
| LP501429 | 3.7 | 155 | 130 | 5.3 | 14.5 | 30 | 3.1 |
| LP501622 | 3.7 | 120 | 100 | 5.3 | 16.5 | 23 | 2.4 |
| LP801622 | 3.7 | 200 | 180 | 8.3 | 16.5 | 23 | 4 |
| LP351745 | 3.7 | 200 | 180 | 3.8 | 17.5 | 46 | 4 |
| LP501745 | 3.7 | 350 | 310 | 5.3 | 17.5 | 46 | 7 |
| LP402024 | 3.7 | 165 | 150 | 4.3 | 20.5 | 25 | 3.3 |
| LP452024 | 3.7 | 180 | 170 | 4.8 | 20.5 | 25 | 6.4 |
| LP602024 | 3.7 | 210 | 190 | 6 | 20 | 25 | 4.5 |
| LP302030 | 3.7 | 130 | 110 | 3.5 | 20.5 | 31 | 2.6 |
| LP352030 | 3.7 | 160 | 140 | 3.8 | 20.5 | 31 | 3.2 |
| LP502030 | 3.7 | 250 | 230 | 5.3 | 20.5 | 31 | 5 |
| LP602030 | 3.7 | 300 | 280 | 6.3 | 20.5 | 31 | 6 |
| LP702030 | 3.7 | 350 | 320 | 7.3 | 20.5 | 31 | 7 |
| LP402035 | 3.7 | 230 | 210 | 4.3 | 20.5 | 36 | 4.6 |
| LP402040 | 3.7 | 270 | 250 | 4.3 | 20.5 | 41 | 5.4 |
| LP602040 | 3.7 | 450 | 420 | 6.3 | 20.5 | 41 | 9 |
| LP552530 | 3.7 | 380 | 360 | 5.8 | 25.5 | 31 | 8 |
| LP402535 | 3.7 | 320 | 300 | 4.3 | 25.5 | 36 | 6 |
| LP542730 | 3.7 | 380 | 350 | 5.7 | 27.5 | 31 | 7.6 |
| LP403026 | 3.7 | 260 | 220 | 4.3 | 30.5 | 27 | 5.2 |
| LP663448 | 3.7 | 1050 | 950 | 6.9 | 34.5 | 49 | 21 |
| LP753448 | 3.7 | 1350 | 1250 | 7.8 | 34.5 | 49 | 27 |
| LP323450 | 3.7 | 550 | 500 | 3.5 | 34.5 | 51 | 11 |
| LP383450 | 3.7 | 720 | 670 | 4.1 | 34.5 | 51 | 14.4 |
| LP423450 | 3.7 | 660 | 610 | 4.2 | 34 | 50 | 13.5 |
| LP503450 | 3.7 | 1000 | 900 | 5.3 | 34.5 | 51 | 20 |
| LP603450 | 3.7 | 1000 | 950 | 6.3 | 34.5 | 51 | 20 |
| LP903450 | 3.7 | 1500 | 1450 | 9.3 | 34.5 | 51 | 31 |
| LP953450 | 3.7 | 1800 | 1700 | 9.8 | 34.5 | 51 | 36 |
| LP103450 | 3.7 | 1850 | 1750 | 10.3 | 34.5 | 51 | 37 |
| LP243454 | 3.7 | 350 | 330 | 3.5 | 34.5 | 55 | 7 |
| LP603455 | 3.7 | 1200 | 1100 | 6 | 34 | 55 | 24 |
| LP803466 | 3.7 | 1900 | 1800 | 8.3 | 34.5 | 67 | 38 |
| LP703480 | 3.7 | 2100 | 2000 | 7.3 | 34.5 | 81 | 42 |
| LP383560 | 3.7 | 850 | 800 | 4.1 | 35.5 | 61 | 17 |
| LP603560 | 3.7 | 1300 | 1200 | 6.3 | 35.5 | 61 | 26 |
| LP853560 | 3.7 | 1800 | 1700 | 8.8 | 35.5 | 61 | 36 |
| LP503759 | 3.7 | 1200 | 1100 | 5.3 | 37.5 | 60 | 24 |
| LP583759 | 3.7 | 1350 | 1250 | 6.1 | 37.5 | 60 | 27 |
| LP653759 | 3.7 | 1550 | 1450 | 6.8 | 37.5 | 60 | 31 |
| LP903759 | 3.7 | 2200 | 2100 | 9.3 | 37.5 | 60 | 44 |
| LP354261 | 3.7 | 800 | 750 | 3.8 | 42.5 | 62 | 16 |
| LP804261 | 3.7 | 2100 | 2000 | 8.3 | 42.5 | 62 | 42 |
As a professional manufacturer in the lithium battery industry, SER Battery has a variety of lithium polymer batteriess, including
1. low-temperature lipo battery,
2. high-rate Lipo battery and
3. normal soft-pack Lipo batteries.
| Applications: |
Widely used for :
1.Telecommunication: cellular phone, web phone, interphone, Bluetooth earphone.
2.Portable office devices: Notebook, PDA, portable electrograph, portable printer.
3.Video devices: GPS, digital camera, camcorder, portable DVD, portable television, MP3, MP4.
4.Portable exchange devices: POS, Handy, Fingerprint machine, portable stock machine.
5.Illuminate devices: miner lamp, searchlight.
6.Others: toys, models.
Hot tags:702035 battery,702035 Lipo Battery 3.7V,3.7v 400mAh 702035 Rechargeable Battery,Rechargeable Lithium ion Polymer Battery 702035,Polymer battery 702035,Li Polymer Battery LP702035,LP702035 3.7V 490mAh,Polymer Li-ion Battery 702035,702035 Lipo Polymer Rechargeable Battery,Customized,low temperature,manufacturers,suppliers,factory
