| Technical Specification: |
| Item | Specification | Remark | |||
| Capacity | Typical | 900mAh | Measured at 0.2C discharge with 2.75V cut-off voltage, after standard charging | ||
| Minium | 900mAh | ||||
| Normal Voltage | 3.7 V | Between 3.6V ~3.9V before shipping | |||
| Discharge cut-off Voltage | 2.750 V | ||||
| Max Charge Protection Voltage | 4.23 V | ||||
| Standard discharge current | 0.2C | ||||
| Max discharge current | 1.0C | ||||
| Standard charge current | 0.2C | Charge method: CC-CV (constant current and contant voltage ) | |||
| Max Charge current | 1.0C | ||||
| Diemnsion | 6*25*30mm | ||||
| Protection function | Over charge, Over discharge,Over load, Short Circuit | ||||

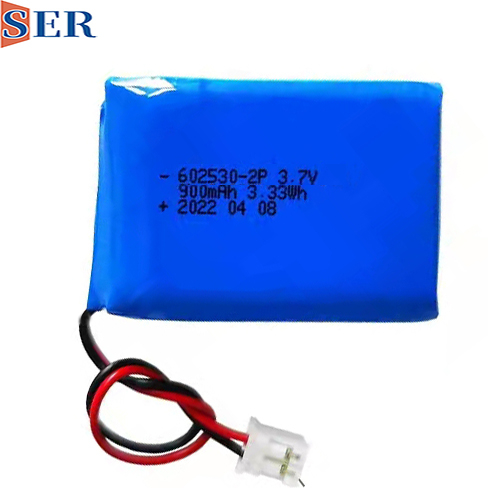

| High light | LP602530 customized 602530 3.7v 900mAh Rechargeable Lithium Polymer Battery li-ion 7.4V battery pack for medical device Quality custom 7.4V LP 602530 parallel small Lipo Battery pack Rechargeable Series Lithium Polymer Battery Pack manufacturer | ||||
| Lithium polymer battery features: |
● High Voltage: Norminal voltage up to 3.8V
● High Energy Density: Energy density up to 550 Wh/kg
● Stable Operating Voltage
More than 90% of the capacity could be output at a stable voltage
● Wide Operating Temperature Range: -20°C to +60°C
● Long cycle Life: More than 500 times
● Customized and flexible size
● Anti-overcharger,short-circuit production(with PCM)
● Low self-discharge
● No memory effect
Visual Inspection:
They should not be any remarkable scratches, cracks,bolts, cauterization, deformations, swelling, leakage and so on the surface of the cell.
Applications: |
Digital products,Watch Recorder,Paintball Gun,smart mobile phone,electronic products; Miner's lamp,digital products. Portable electric ,Music box; Hair dryer,robot vacumm cleaner,wireless video doorbells; Modality equipment: Digital camera, DV, mobile DVD,etc
| Production process: |
| Why Choose US: |
Company Advantage | |||||||
|  |  | |||||
With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month. | Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company. | Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service. | |||||
 |  |
| |||||
Efficient and innovative R & D team helps the company lead in product design and superior performance | While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities. | For many years, the professional | |||||
Product Advantage | ||||
| 1. Full range of battery categories 17 years of development, SER have | 2. Safety The perfect protection IC has been used, | 3. Excellent and stable performance Strict control for cleanliness in dust-free | ||
4. OEM & ODM Ability Professional engineers have rich | 5. Technology Our dedicated and experienced engineers team always work together to our customers | 6. Delievry Fast delivery with standard package,will | ||
Hot tags:602530 battery,602530,LP 602530 7.4V battery pack,BATTERY PACK 7.4v,Lithium Polymer Battery 602530 400mah,Lipo 602530 400mah 3.7V With PCB,PL 602530 with PCM board,Polymer 602530 3.7v 600mah Lithium Battery,602530 3.7v 450mah Li Polymer Battery,Buy 602530 battery,Customized,low temperature,manufacturers,suppliers,factory
