| Detailed Product Description |
| Battery Type: | C Size | Voltage: | 7.2V |
|---|---|---|---|
| Capacity: | 6,500mAh | Chemical System: | LiSocl2 |
| Size: | 55mm*50mm | Shelf Life: | 10 Years |
| Application1: | Smart Locks | Application2: | Detectors |
| Application3: | Portable Communication Equipment | Application4: | Digital Control Machine |
| Shape: | Cyclindrical | ||
| High Light: | 7.2 Volt LI SOCL2 Battery,6500mAh LI SOCL2 Battery,Cylindrical lithium socl2 | ||
2ER26500-S 7.2V LISOCL2 battery pack with cutoff PCB For GPS tracking Smart Locks
| Technical specifications: |
| Battery Technology | Lithium thionyl chloride / LiSOCL2 |
| Battery structure | High capacity type |
| Nominal Voltage | 7.2V |
| Nominal Capacity | 6500mAh |
| Open circuit voltage | 3.66V (at +20°C) |
| Cut off Voltage | 2.0V |
| Max. Constant Current | 1000mA |
| Max. Pulse Current | 2100mA |
| Operating Temperature | -55°C~+85°C/-67°F~+185°F |
| Storage Life | ≥10 years |
| Self – Discharge Rate: | <1% per year |
| External Diameter (Max) | 55mm |
| External Height (Max) | 50mm |
| Weights | 53g |
| Features |
1.High continuous discharge current and current pulses.
2.High energy density, 430Wh/Kg.
3.Open circuit voltage above 3.65V for single cell.
4.Wide range of operating temperature(-55°C~+85°C).
5.Stable voltage and current over 95% of the cell capacity is discharged at high plateau voltage.
6.Long operating time (over 8 years) for continuous low current discharge with high current pulses.
7.Low self-discharge rate (less than 1% per year) and long storage life (over 10 year under normal room temperature).
| Application |
The battery have wide applications:
Utility water/ Gas Meter, smart locks, Automatic Meter Reading;
Medical Equipment, CMOS memory backup, Tracking Systems,Remote Monitory Systems;
Law Enforcement (RFID), Earthquake Detectors, Digital Control Devices, Electronic Toll Tags;
Scientific Instruments, Portable Communication Equipment, Military Radio Stations;
and other electric powered devices requiring small size, high power batteries.
| Packaging & Shipping |
Packing: Tray bulk, Blister card, PVC shrink, Gift-Box, Nude packing, OEM packing, etc.
Shipping: Leadtime is 3-20 working days for normal orders.
| Pictures: |

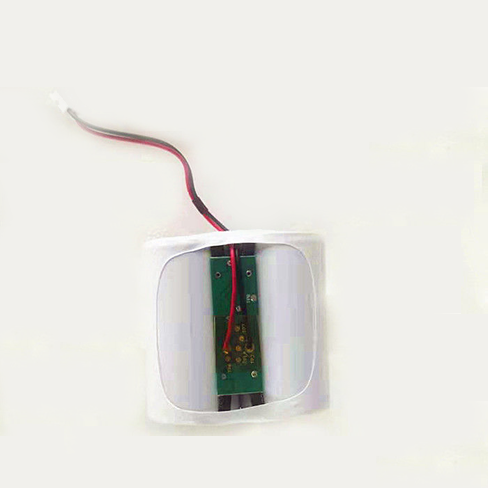

2ER26500-S 7.2V LISOCL2 battery pack with cutoff PCB For GPS tracking Smart Locks
We can add the Pin, wire and connector on the battery according to requirement
| Why Choose us? |
Company Advantages:
We have been continously developing new products to meet requirements of different customers and applications since 1980. what's more, performance of batteries such as safety, energy density, temperature characteristics, discharge platform, resistance, cycle life is always improving.
Pursuing a business concept of “Quality First”, our assembly lines are certified by the Chinese military and ISO9001 quality system. We also have a fully equipped environment and reliability testing center to assure our products meeting military specifications.
High quality batteries:
Our batteries are in enough capacity, and lower in RI. Before shipment, we will 100% inspect and ensure battery quality well approved by our clients.
Better service:
Professional and experienced engineers can provide satisfied perfect solutions to customers. New designs can lead to actual products within 15days.A professional,dedicated and well known technical& marketing team with the ability to identify,support and serve our customers with diamante service.
We always offer customers with highest quality, reasonable price and intimate after-service to support them on marketing developing. It is our wish to obtain muti-benefit with global users through OEM and ODM business.
Hot tags:2ER26500M,2ER26500M battery pack,2ER26500-S battery,ER26500M 2 parallel,LiSOCL2 battery with PCB,Li SOCL2 batteries with Protect circuit board,7.2V ER26500M-S,2ER26500M 7.2v BATTERY PACK,2er26500-s 7.2V 6500mAh,smart Lock battery,Customized,low temperature,manufacturers,suppliers,factory
