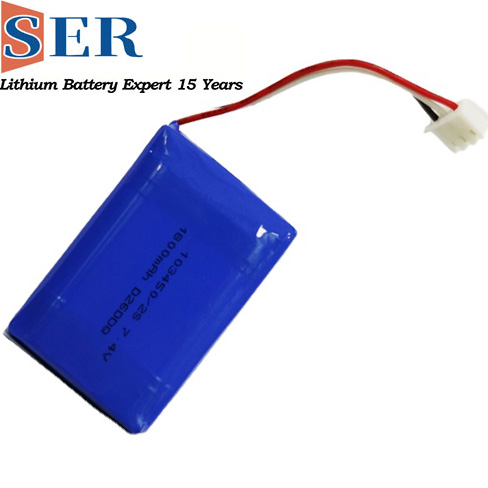

| Specification of Lithium Polymer cell packs 103450: |
| Specification | Parameters | Lithium Polymer cell packs 103450 |
| Nominal | Voltage | 3.7V / 7.4V |
| Capacity | 2000mAh @ 0.2C to 3.0 V @ 23° C | |
| Dimension | 10.0*34*50mm | |
| Electrical | Constant Discharge Current | 400mA |
| Max Discharge Current | 2000 mA, | |
| Physical | Terminals/ Connector | Nickel Tabs, wire, plug or OEM |
| Others | Working Temperature | -20-65℃ |
| Storage Temperature | 0~35℃ | |
| Protection Functions (PCM) | Over charge, Over discharge, Over load, Short Circuit protection | |
| High Light | LP103450 Customize Lithium Polymer cell pack 103450 3.7V 7.4V 1800mAh Lipo batteries Lithium ion Polymer Battery manufacturer | |
| Features of lithium ion polymer battery / lipo battery / Li-polymer battery: |
1. Superior Safety
2. High power, Higher discharge rate is supported.
3. Long running time
4. Lighter weight
5. Increased Flexibility
6. Energy density is high
7. Stable operating voltage;
8. Wide Operating temperature range;
9. The shape can be customized
10. Excellent discharge and charge characteristics
11. Thin thickness, We can make Lipo battery,Lithium polymer battery as thin as 0.4-0.6mm, which is perfect for smart card, security card, RFID ,ETC, Tags, Alarm system and more applications.
Lithium ion polymer/ Lipo battery Catalogue |
| Model | Nominal Voltage(V) | Nominal(mAh) | Dimension(mm) | Approx. Weight (g) | |||
| Typical | Mini | Thickness | Width | Height | |||
| LP301230 | 3.7 | 70 | 60 | 3.5 | 12.5 | 31 | 1.4 |
| LP401230 | 3.7 | 100 | 90 | 4.3 | 12.5 | 31 | 2 |
| LP501429 | 3.7 | 155 | 130 | 5.3 | 14.5 | 30 | 3.1 |
| LP501622 | 3.7 | 120 | 100 | 5.3 | 16.5 | 23 | 2.4 |
| LP801622 | 3.7 | 200 | 180 | 8.3 | 16.5 | 23 | 4 |
| LP351745 | 3.7 | 200 | 180 | 3.8 | 17.5 | 46 | 4 |
| LP501745 | 3.7 | 350 | 310 | 5.3 | 17.5 | 46 | 7 |
| LP402024 | 3.7 | 165 | 150 | 4.3 | 20.5 | 25 | 3.3 |
| LP452024 | 3.7 | 180 | 170 | 4.8 | 20.5 | 25 | 6.4 |
| LP602024 | 3.7 | 210 | 190 | 6 | 20 | 25 | 4.5 |
| LP302030 | 3.7 | 130 | 110 | 3.5 | 20.5 | 31 | 2.6 |
| LP352030 | 3.7 | 160 | 140 | 3.8 | 20.5 | 31 | 3.2 |
| LP502030 | 3.7 | 250 | 230 | 5.3 | 20.5 | 31 | 5 |
| LP602030 | 3.7 | 300 | 280 | 6.3 | 20.5 | 31 | 6 |
| LP702030 | 3.7 | 350 | 320 | 7.3 | 20.5 | 31 | 7 |
| LP402035 | 3.7 | 230 | 210 | 4.3 | 20.5 | 36 | 4.6 |
| LP402040 | 3.7 | 270 | 250 | 4.3 | 20.5 | 41 | 5.4 |
| LP602040 | 3.7 | 450 | 420 | 6.3 | 20.5 | 41 | 9 |
| LP552530 | 3.7 | 380 | 360 | 5.8 | 25.5 | 31 | 8 |
| LP402535 | 3.7 | 320 | 300 | 4.3 | 25.5 | 36 | 6 |
| LP542730 | 3.7 | 380 | 350 | 5.7 | 27.5 | 31 | 7.6 |
| LP403026 | 3.7 | 260 | 220 | 4.3 | 30.5 | 27 | 5.2 |
| LP663448 | 3.7 | 1050 | 950 | 6.9 | 34.5 | 49 | 21 |
| LP753448 | 3.7 | 1350 | 1250 | 7.8 | 34.5 | 49 | 27 |
| LP323450 | 3.7 | 550 | 500 | 3.5 | 34.5 | 51 | 11 |
| LP383450 | 3.7 | 720 | 670 | 4.1 | 34.5 | 51 | 14.4 |
| LP423450 | 3.7 | 660 | 610 | 4.2 | 34 | 50 | 13.5 |
| LP503450 | 3.7 | 1000 | 900 | 5.3 | 34.5 | 51 | 20 |
| LP603450 | 3.7 | 1000 | 950 | 6.3 | 34.5 | 51 | 20 |
| LP903450 | 3.7 | 1500 | 1450 | 9.3 | 34.5 | 51 | 31 |
| LP953450 | 3.7 | 1800 | 1700 | 9.8 | 34.5 | 51 | 36 |
| LP103450 | 3.7 | 1850 | 1750 | 10.3 | 34.5 | 51 | 37 |
| LP243454 | 3.7 | 350 | 330 | 3.5 | 34.5 | 55 | 7 |
| LP603455 | 3.7 | 1200 | 1100 | 6 | 34 | 55 | 24 |
| LP803466 | 3.7 | 1900 | 1800 | 8.3 | 34.5 | 67 | 38 |
| LP703480 | 3.7 | 2100 | 2000 | 7.3 | 34.5 | 81 | 42 |
| LP383560 | 3.7 | 850 | 800 | 4.1 | 35.5 | 61 | 17 |
| LP603560 | 3.7 | 1300 | 1200 | 6.3 | 35.5 | 61 | 26 |
| LP853560 | 3.7 | 1800 | 1700 | 8.8 | 35.5 | 61 | 36 |
| LP503759 | 3.7 | 1200 | 1100 | 5.3 | 37.5 | 60 | 24 |
| LP583759 | 3.7 | 1350 | 1250 | 6.1 | 37.5 | 60 | 27 |
| LP653759 | 3.7 | 1550 | 1450 | 6.8 | 37.5 | 60 | 31 |
| LP903759 | 3.7 | 2200 | 2100 | 9.3 | 37.5 | 60 | 44 |
| LP354261 | 3.7 | 800 | 750 | 3.8 | 42.5 | 62 | 16 |
| LP804261 | 3.7 | 2100 | 2000 | 8.3 | 42.5 | 62 | 42 |
As a professional manufacturer in the lithium battery industry, SER Battery has a variety of lithium polymer batteriess, including
1. low-temperature lipo battery,
2. high-rate Lipo battery and
3. normal soft-pack Lipo batteries.
| Lithium ion polymer/ Lipo battery Applications: |
Main applications:
The Best Choice for the Following Applications
1. smart mobile phone,electronic products, GPS,GPRSNavigation.
2. PSP,PDP,Learning machine,battery hair straightener
3. miner’s lamp,digital products. Portable electric ,Music box
4. hair dryer,robot vacumm cleaner,wireless video doorbells
5. Massager, eyelash curler, Notebook, PDA, portable fax and printer;
6. Tablet pc, Modality equipment: Digital camera, DV, mobile DVD
Company Advantage | |||||||
|  |  | |||||
With three producing bases, sixteen advanced manufacturing lines, over 1650 staff, we can produce 20000,00 primary cells and 600,000 rechargeable battery packs per month. | Founded in 2004, Guangzhou Ser Battery Technology Co.,Ltd is CE. UL. SGS, IEC and ISO9001 certificated High-tech company. | Customers' interests always goes first,SER has a professional sales team, shipping team and after sales team to provide you with the best solutions and timely service. | |||||
 |  |
| |||||
Efficient and innovative R & D team helps the company lead in product design and superior performance | While keeping core competitivenes, SER also takes into account relevant social, economic and environmental goals, and always maintains sustained profitability and development capabilities. | For many years, the professional | |||||
Product Advantage | ||||
| 1. Full range of battery categories 17 years of development, SER have | 2. Safety The perfect protection IC has been used, | 3. Excellent and stable performance Strict control for cleanliness in dust-free | ||
4. OEM & ODM Ability Professional engineers have rich | 5. Technology Our dedicated and experienced engineers team always work together to our customers | 6. Delievry Fast delivery with standard package,will | ||
Hot tags:103450 battery,3.7V 103450 2000mAh Lipo Battery,Li-Polymer Battery 103450,103450 Lipo Rechargeable battery,103450 Replacement Batteries,Lipo 103450 with PH 2.54 JST Connector,LP103450 2P 3.7V 3600mAh,3.7 v Lp103450 Battery,LP103450 Battery,Customized,low temperature,manufacturers,suppliers,factory
